| WD630H | |
| Welding Range(mm) | 315 355 400 450 500 560 630 |
| Input Voltage | 380V/220V |
| Usage | PE HDPE PPR pipe welding |
| Certification | ISO CE |
| Warranty | 2 Years |
| Power (kW) | 12.35 KW |
| Heating Plate Power | 9.35 KW |
| Planning Tool Power | 1.5 KW |
| Hydraulic Unit Power | 1.5 KW |
| Working Voltage | 380V/220V 50/60HZ |
| Temperature Control range | 0-270℃ |
| VOLUME | 3.2cbm |
Product Description

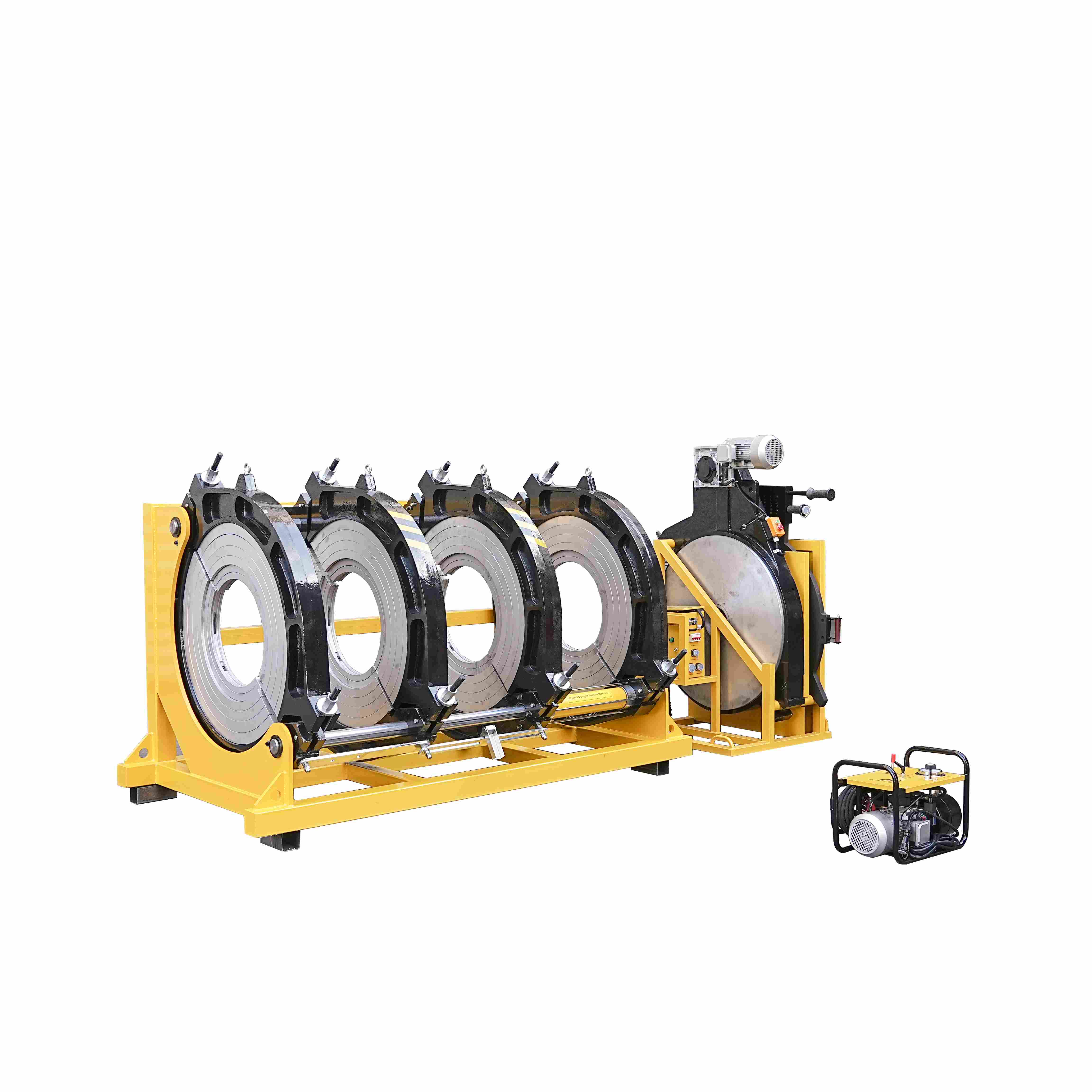

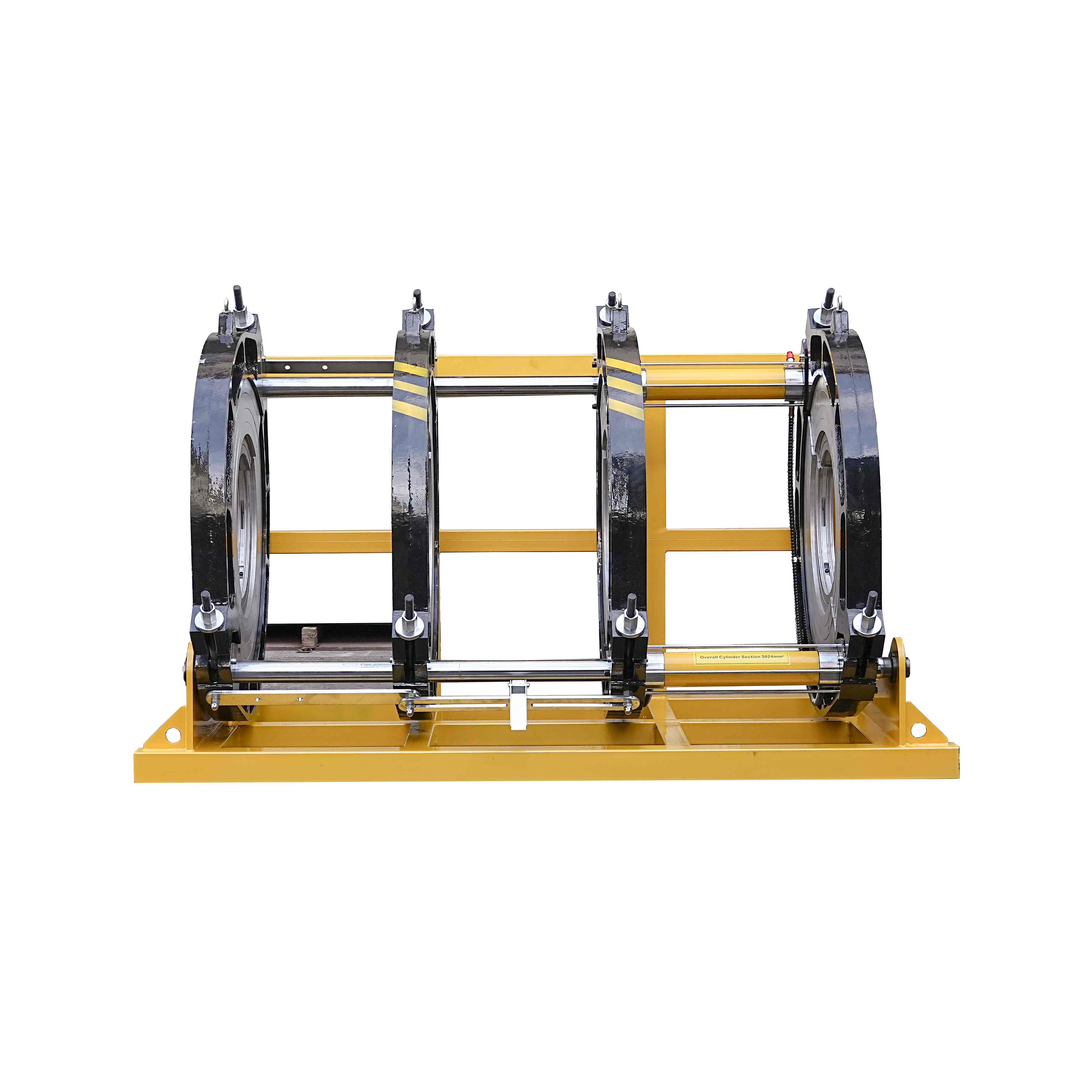

WD630H butt fusion welding machine, it be composed of Basic Frame, Planning Tool, Heating plate, Hydraulic Unit, Heating Plate Cable, Support, Electric unit.Used for welding pipe fittings and pipes made of plastic materials such as HDPE, PP, PVDF, etc.
Widely used in industry, fire protection, plumbing, water supply, sewerage and irrigation projects. Directly welds pipes with elbows, tees, wyes, flange necks and other fittings without extra equipment—simply adjust clamp rods.
Suitable for water supply networks, gas distribution systems, industrial pipelines and mining. Enables safe, leak-free thermoplastic pipe connections, ensures gas infrastructure integrity, provides durable fusion joints, and supports efficient welding of critical mining pipelines for reliable transportation of water, chemicals and other resources.

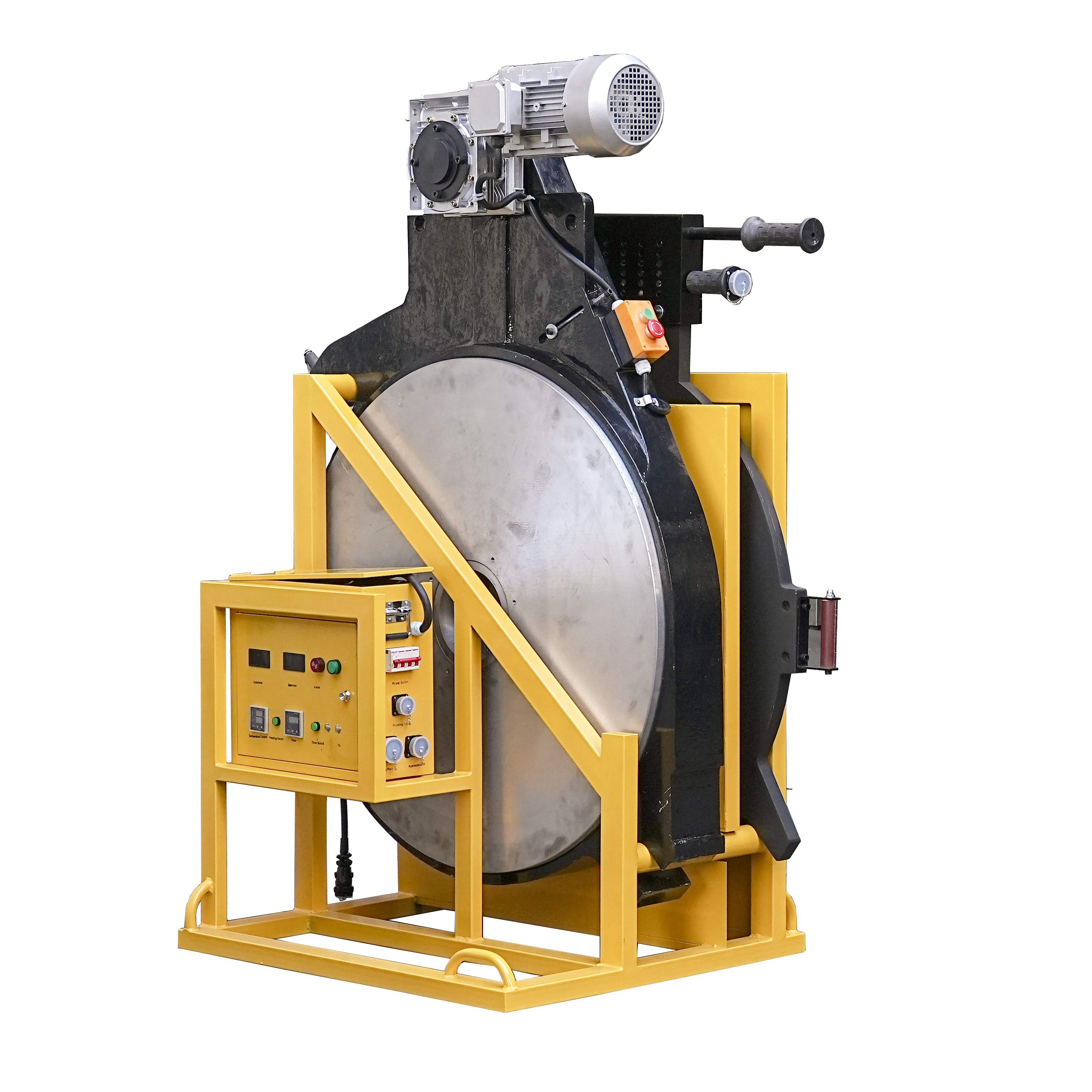

It is made of lightweight and high-strength materials, with a clamp opening angle of 45°, and is easy to operate. The 380V working pressure ensures stable welding of large-diameter pipes; the switchable welding positions facilitate the welding of various pipe fittings. It is equipped with a detachable Teflon-coated heating plate with precise temperature control, and a trolley or hoist can be optionally equipped for transporting the butt welder.

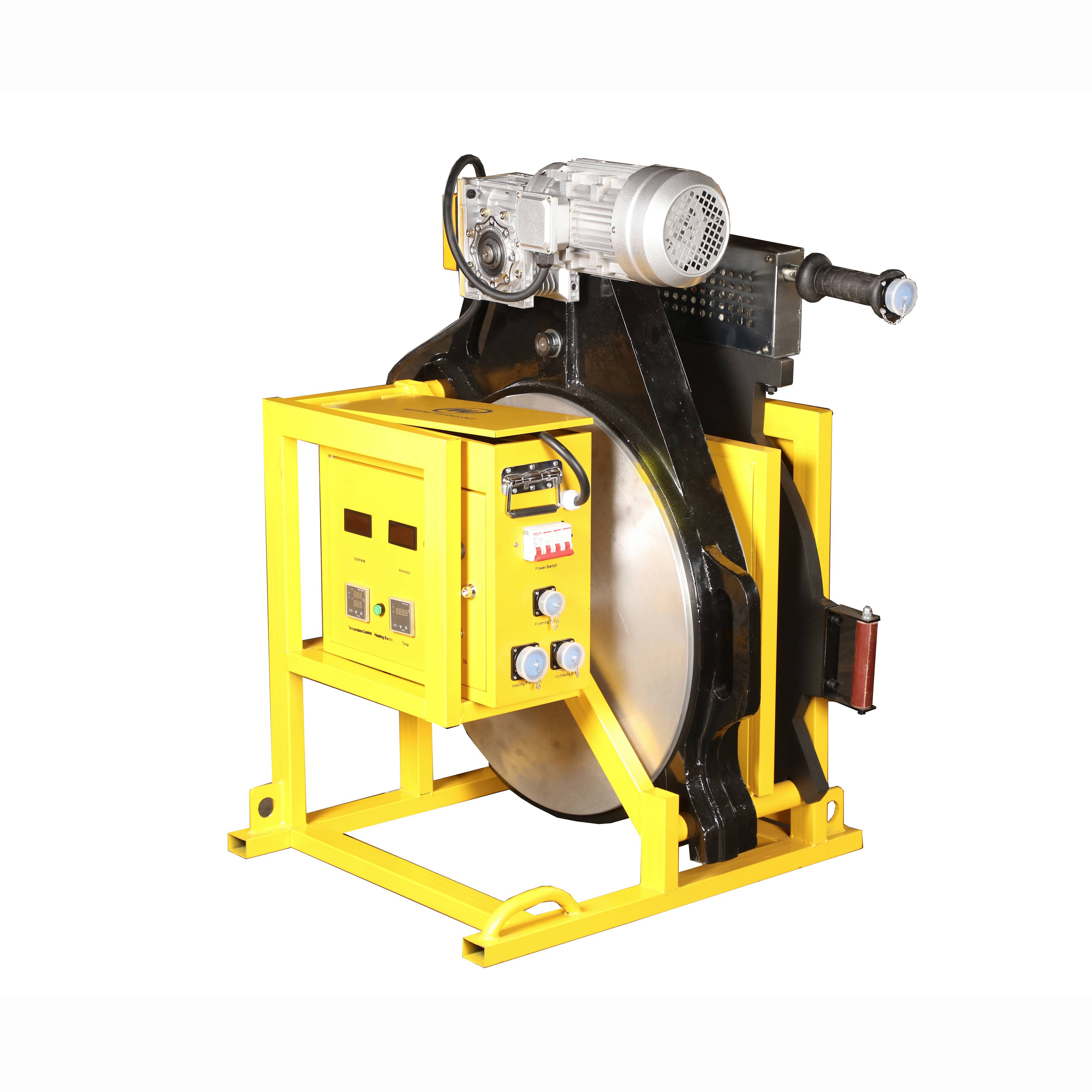

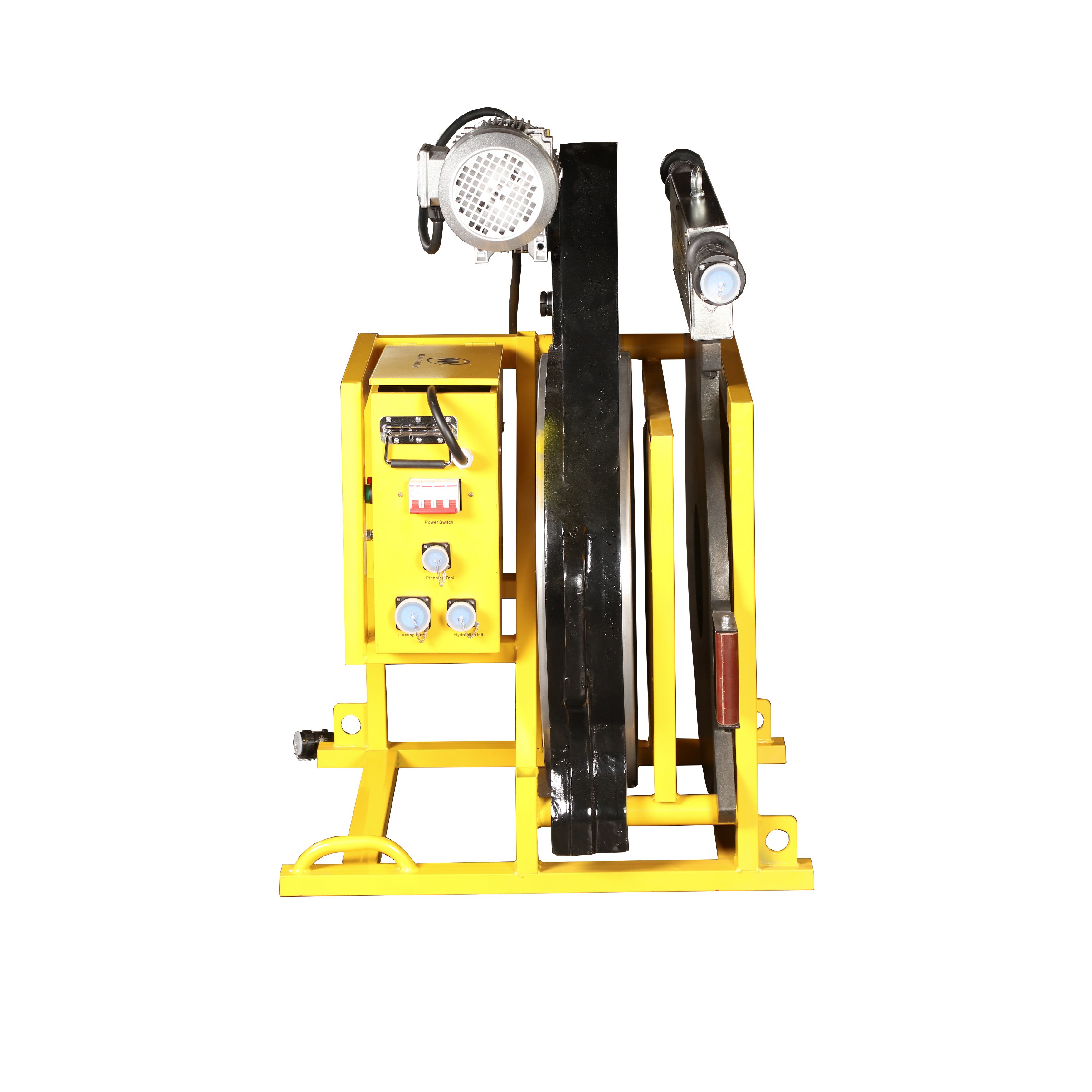

The Electric unit is equipped with a digital display ammeter and a transformer, which helps the machine maintain a stable working state and improves the accuracy of welding.
FEATURES
1.Removable PTFE coated heating plate with separate temperature control system.
2.Electric Planning tool with reversible double cutting edge blades.

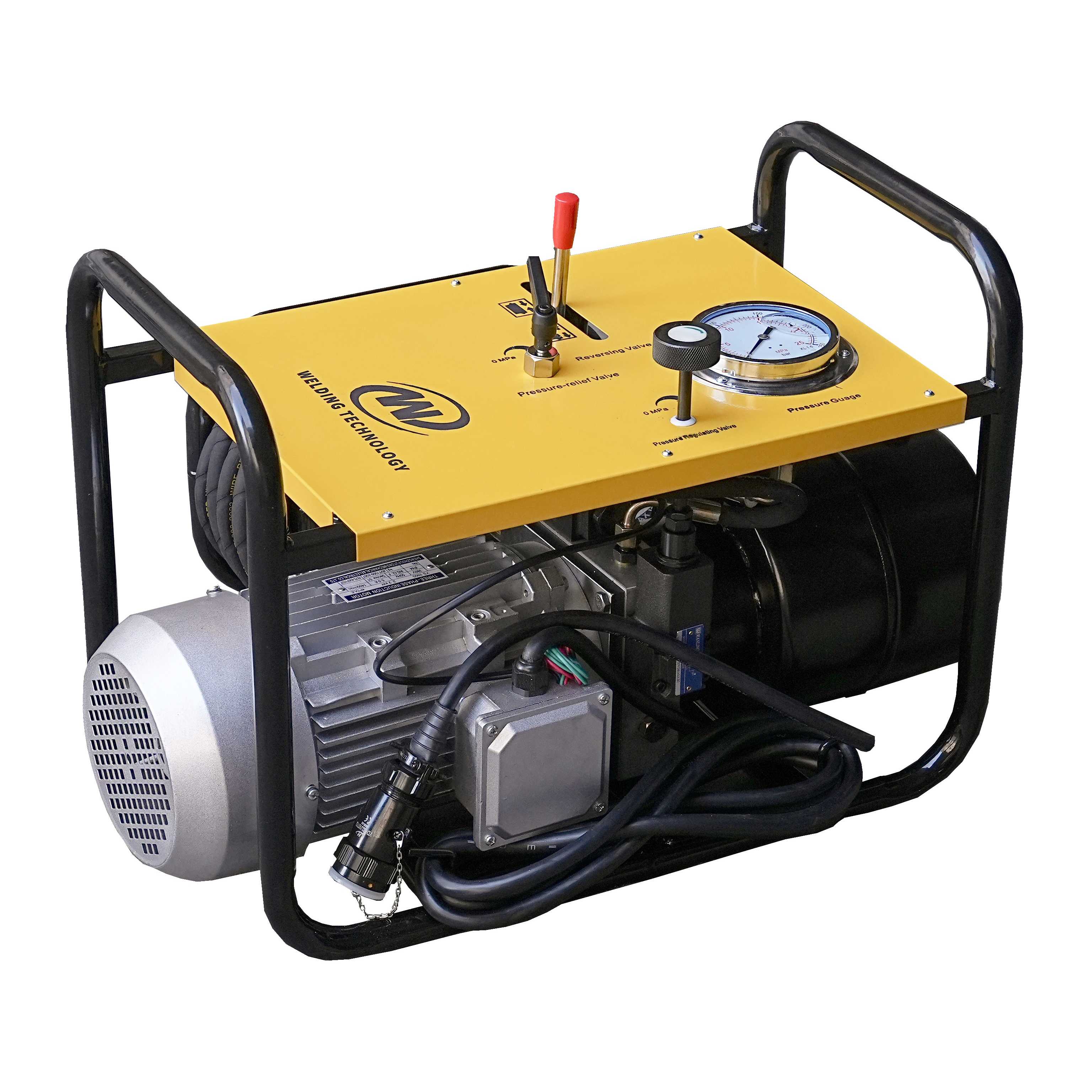

3.Hydraulic unit provides welding machine with steady pressure.
4.Planning tool be made of Aluminum material
5.Low starting pressure ensures reliable welding quality of small pipes
6.Temperature controller and Timer, easy to know the exact time and temperature.
Optional parts
Hoist Trolley
Stub end Holder（Flange chuck）
Data logger
