| WDP160M2 | |
| Welding Range(mm) | 40 50 60 75 90 110 125 140 160 |
| Input Voltage | 220V |
| Usage | PE HDPE PPR pipe welding |
| Certification | ISO CE |
| Warranty | 2 Years |
| Power (kW) | 1.71 KW |
| Heating Plate Power | 1.0 KW |
| Planning Tool Power | 0.71 KW |
| Working Voltage | 220V 50/60HZ |
| Temperature Control range | 0-270℃ |
| VOLUME | 0.15 cbm |
| WDP200M2 | |
| Welding Range(mm) | 40 50 60 75 90 110 125 140 160 200 |
| Input Voltage | 220V |
| Usage | PE HDPE PPR pipe welding |
| Certification | ISO CE |
| Warranty | 2 Years |
| Power (kW) | 2.31 KW |
| Heating Plate Power | 1.6 KW |
| Planning Tool Power | 0.71 KW |
| Working Voltage | 220V 50/60HZ |
| Temperature Control range | 0-270℃ |
| VOLUME | 0.15 cbm |
| WDP160M4 | |
| Welding Range(mm) | 40 50 60 75 90 110 125 140 160 |
| Input Voltage | 220V |
| Usage | PE HDPE PPR pipe welding |
| Certification | ISO CE |
| Warranty | 2 Years |
| Power (kW) | 1.71 KW |
| Heating Plate Power | 1.0 KW |
| Planning Tool Power | 0.71 KW |
| Working Voltage | 220V 50/60HZ |
| Temperature Control range | 0-270℃ |
| VOLUME | 0.18 cbm |
| WDP200M4 | |
| Welding Range(mm) | 40 50 60 75 90 110 125 140 160 200 |
| Input Voltage | 220V |
| Usage | PE HDPE PPR pipe welding |
| Certification | ISO CE |
| Warranty | 2 Years |
| Power (kW) | 2.31 KW |
| Heating Plate Power | 1.6 KW |
| Planning Tool Power | 0.71 KW |
| Working Voltage | 220V 50/60HZ |
| Temperature Control range | 0-270℃ |
| VOLUME | 0.18 cbm |
Product Description

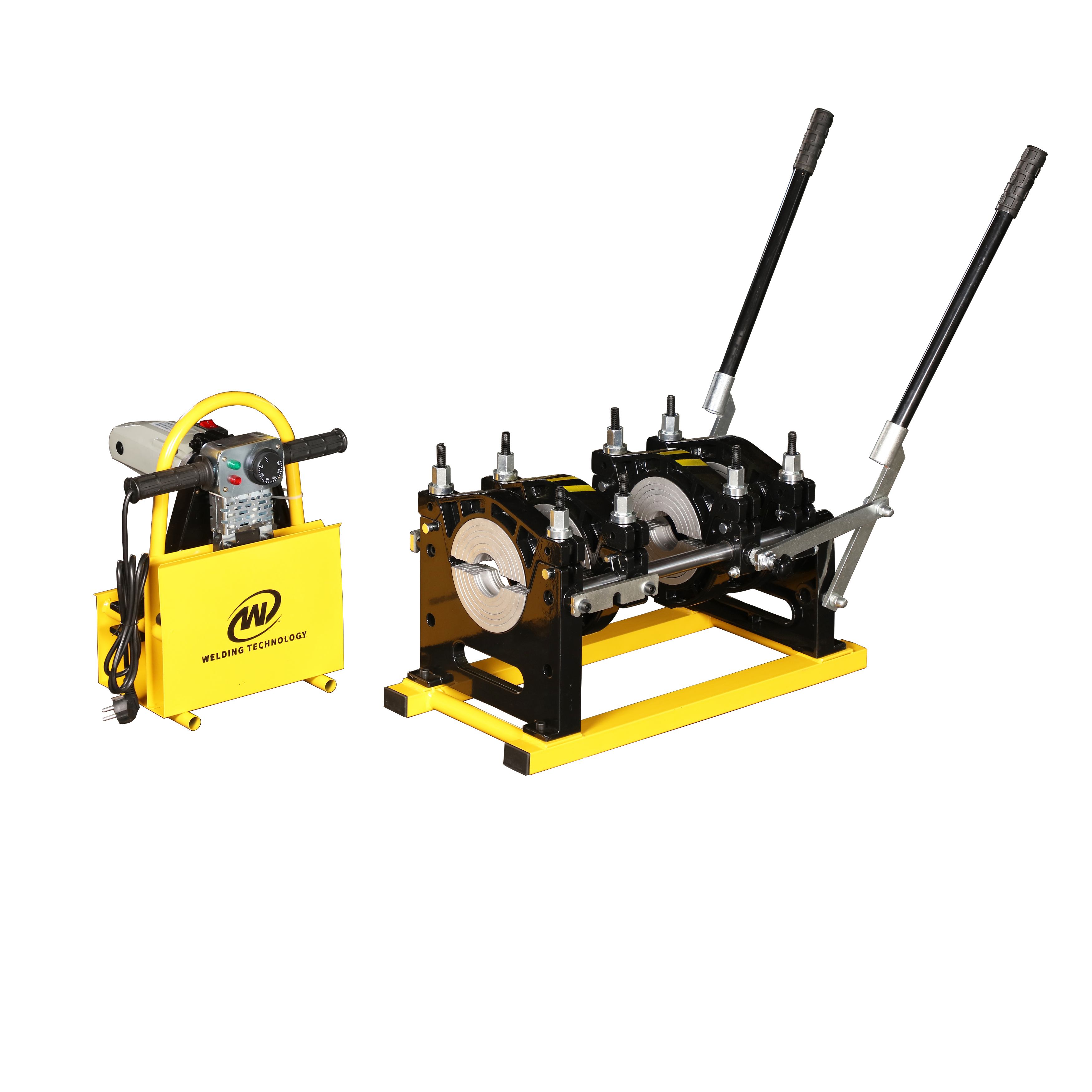

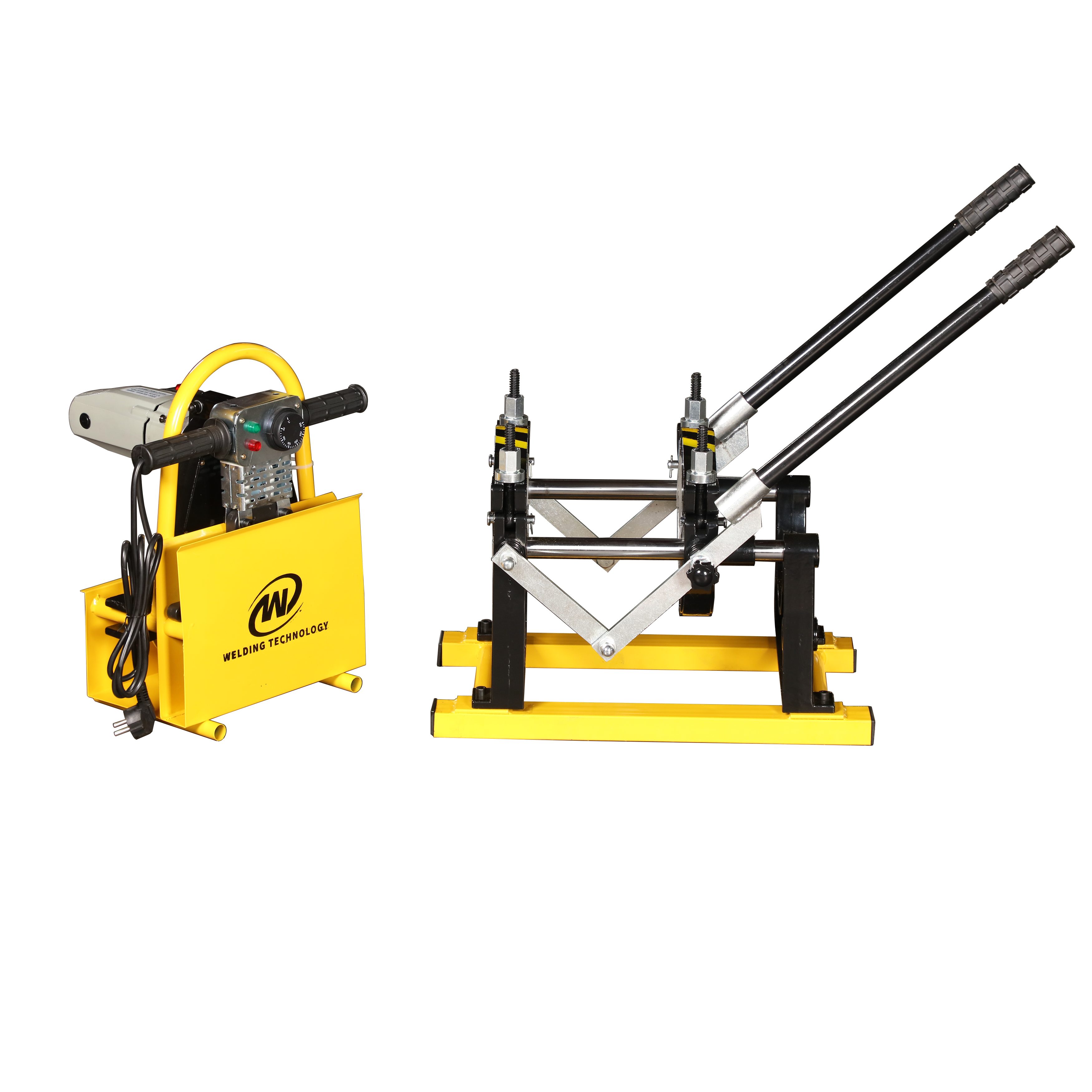

WDP160M2-200M4 is a hand-push manual butt welding machine, designed for complex construction scenarios. It is a cost-effective solution for a wide array of piping applications across municipal, industrial, marine, mining, landfill, duct and agricultural sectors.
This machine is suitable for welding thermoplastic pipes and fittings including HDPE, PE, PP and PVDF, with a welding range of 40–200 mm in pipe diameter.

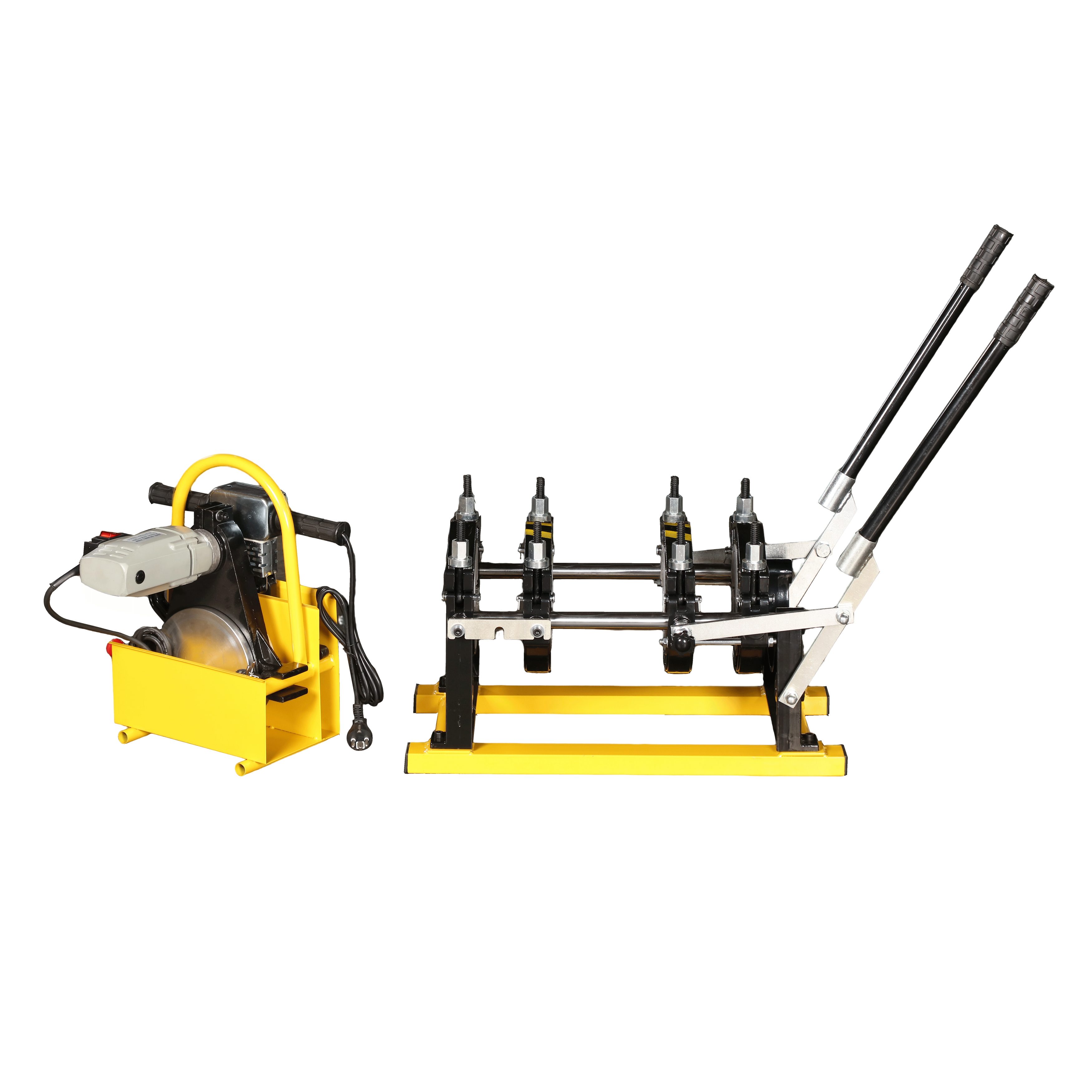

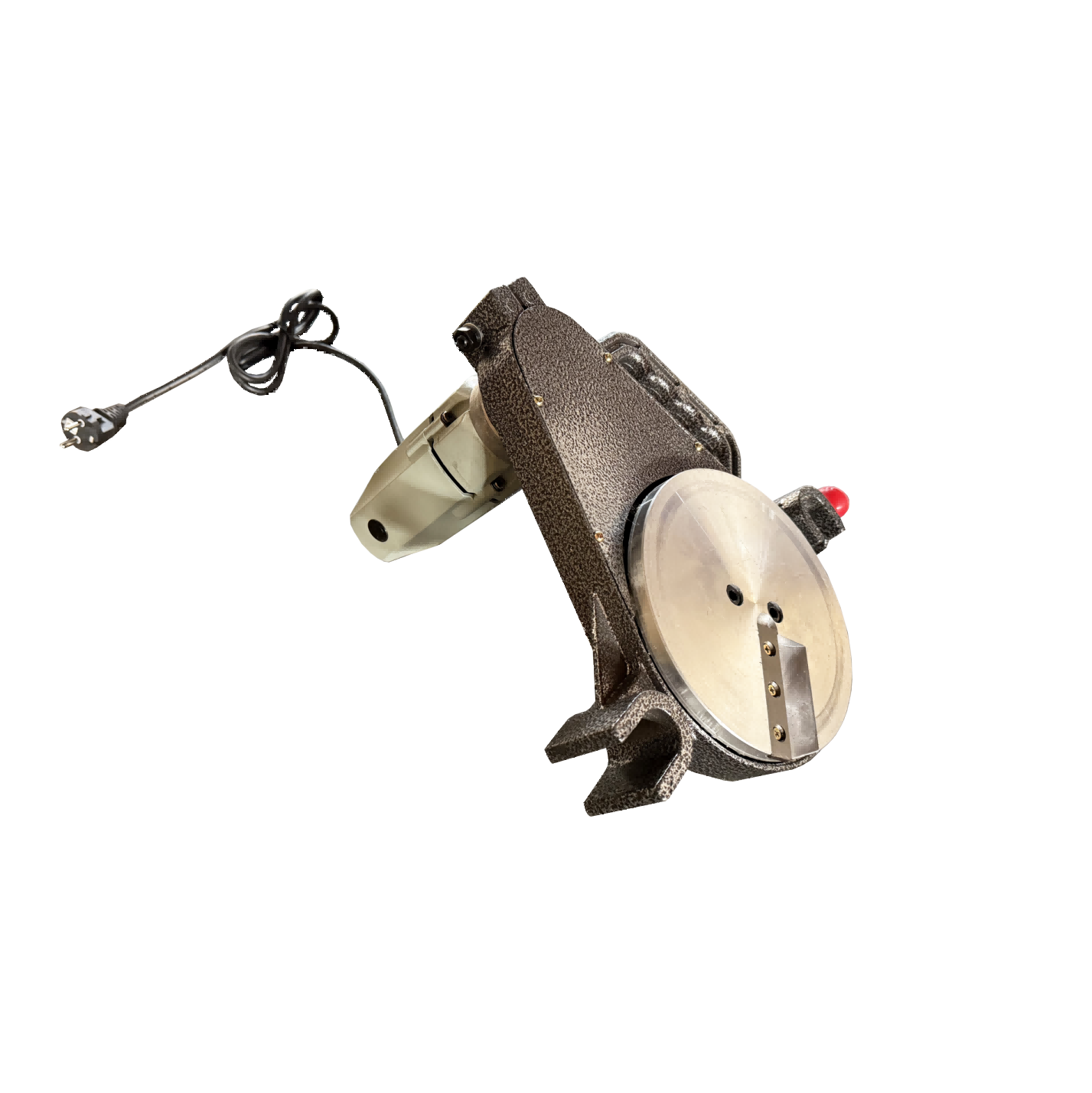

The manual butt fusion welding machine consists of three key components: the planing tool (trimmer/facer), and heating Plate,Basic Frame and Support.

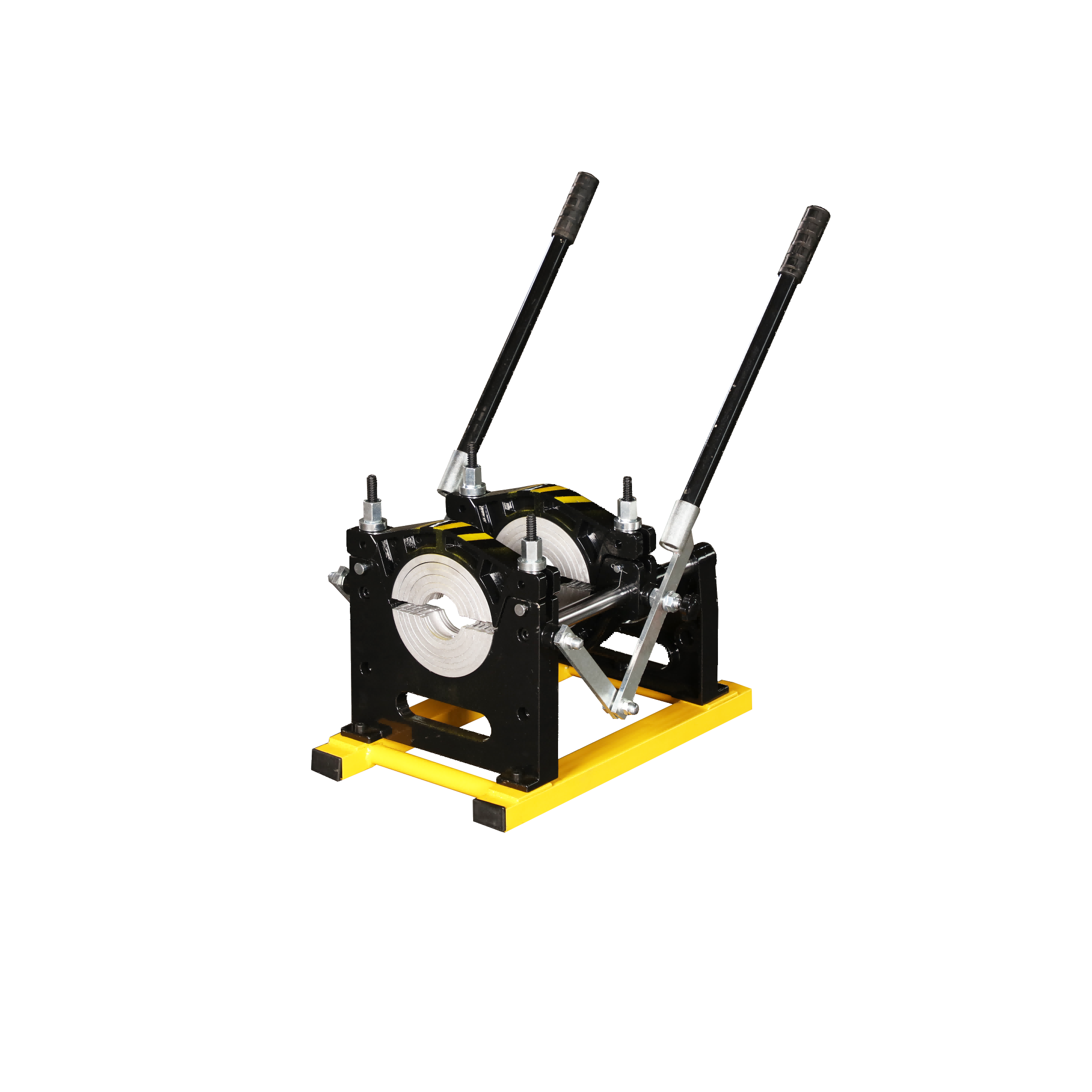

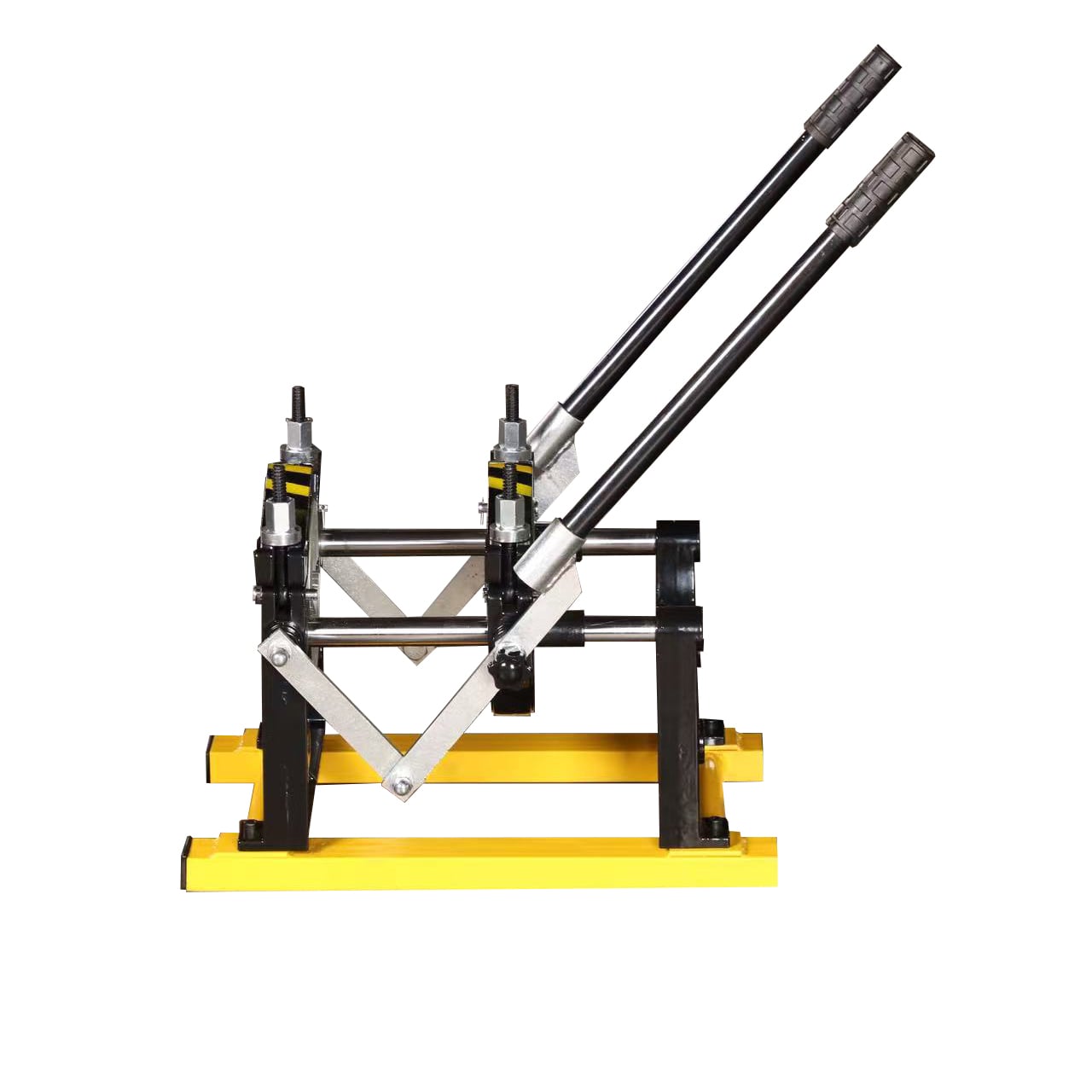

The Basic Frame and Support enables precise pipe-end alignment and stable clamping. The planing tool and heater handle accurate trimming and heating respectively.

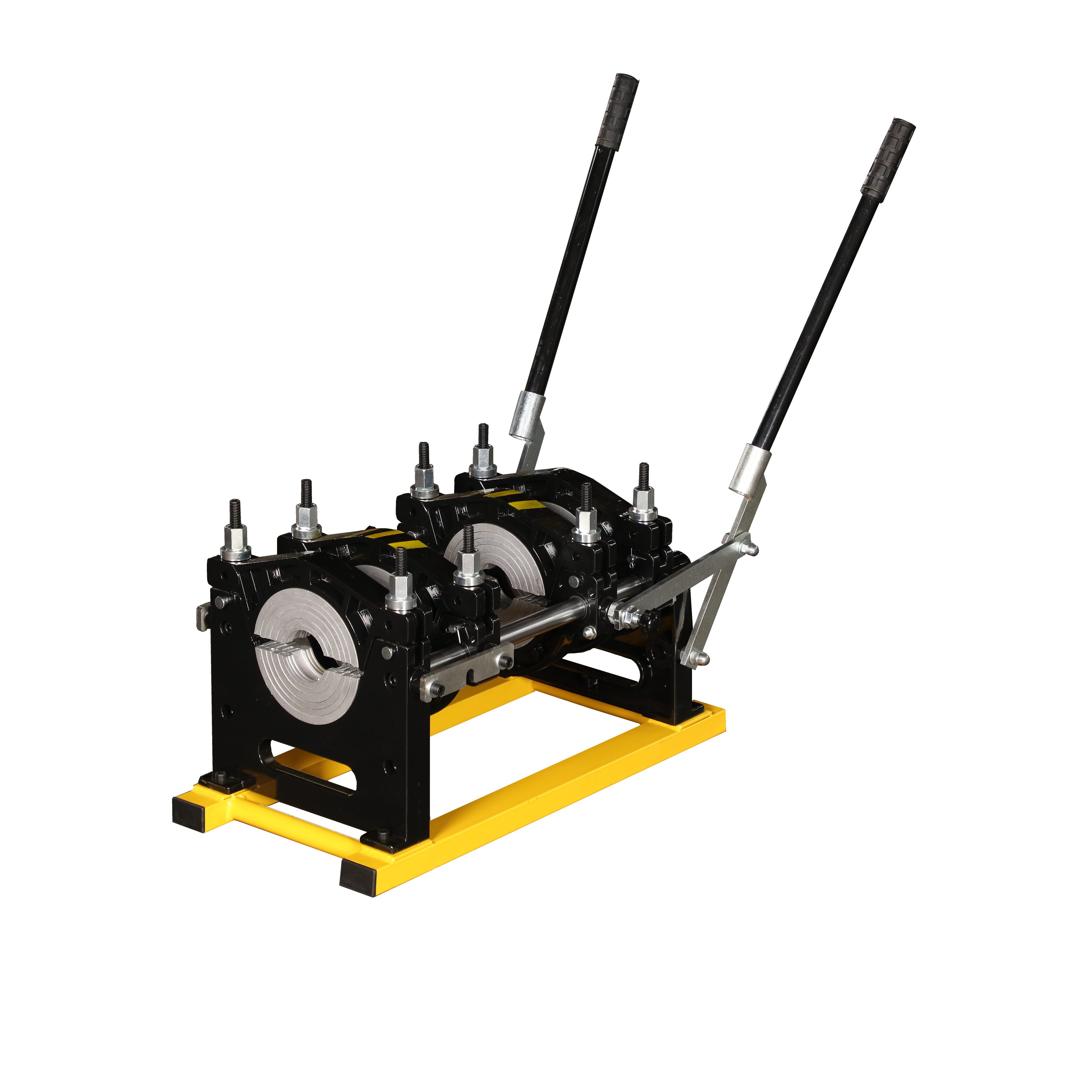

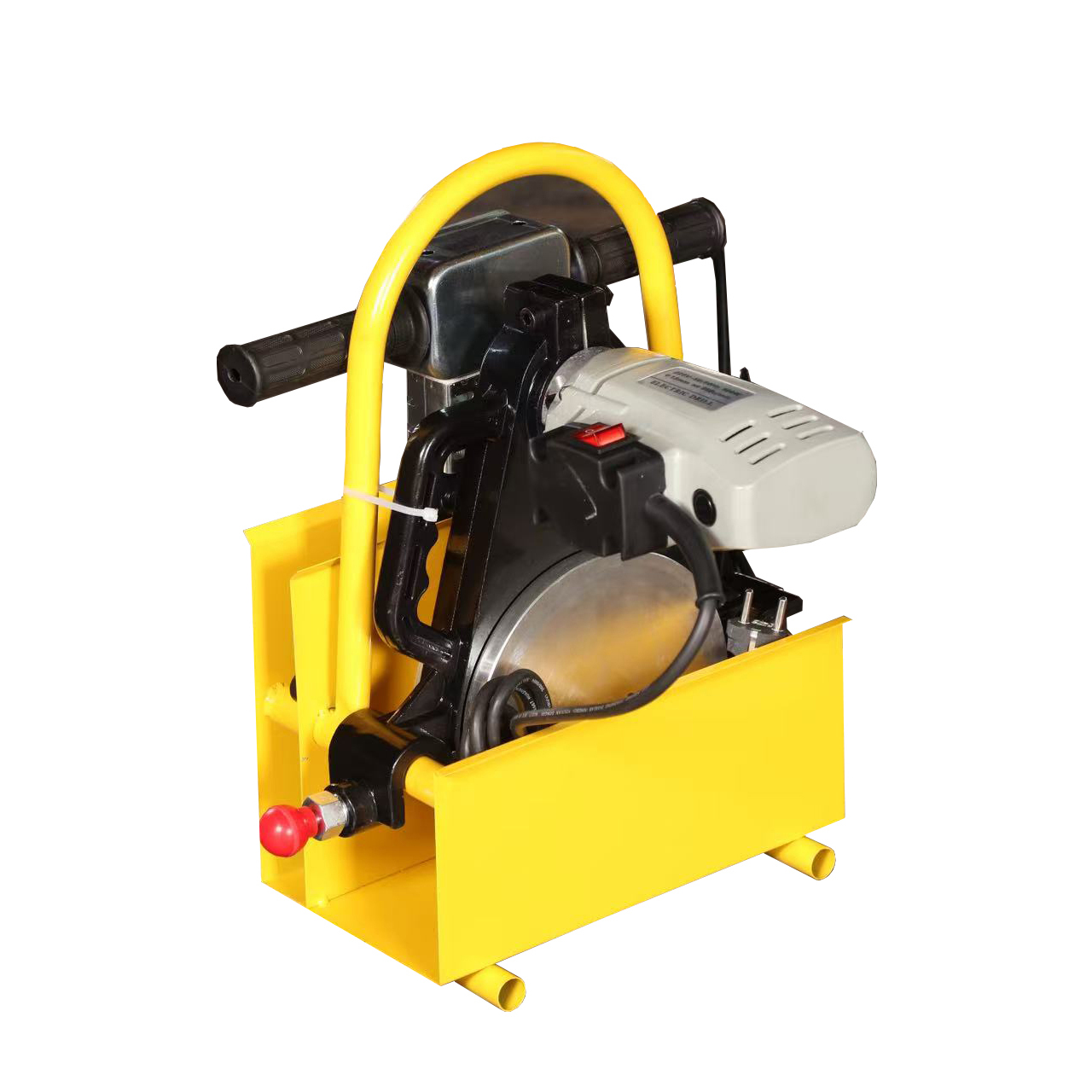

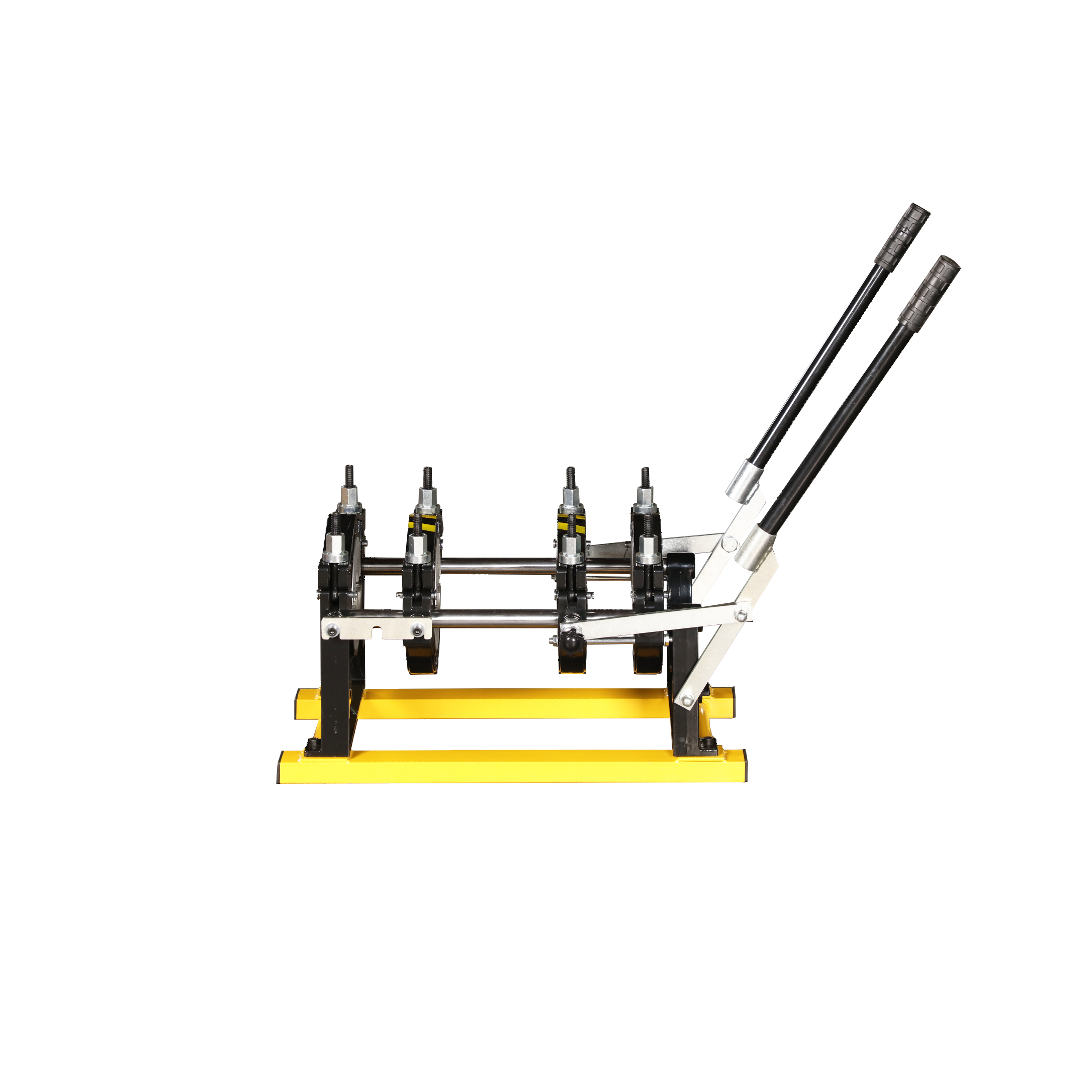

The main body is fitted with one/two fixed clamps and one movable clamp to support and center plastic pipes. The heating plate comes with a high-precision digital thermostat—equipped with a display and adjustment buttons—for accurate, hassle-free temperature monitoring. The upgraded system includes LED indicators that signal anomalies like sensor failures or temperature deviations.
FEATURES
This machine can operate in confined spaces..
This machine is equipped with a manual locking button and can semi-automatically lock pipe fittings together.
Be made of Aluminum material,easy to carry and transport.
Machine Picture and Project Picture
 |
 |
 |
 |
 |
 |
