| WDC315 | |
| Cutting Range(mm) | ≤315mm |
| Cutting Angle | 0-67.5° |
| Cutting Angle Error | ≤1° |
| Line Speed | 0-250m/min |
| Feed Speed | Adjustable |
| Working Voltage | 380V,50/60Hz |
| Total Power | 2.25KW |
| Weight | 1500KG |
| WDC630 | |
| Cutting Range(mm) | ≤630mm |
| Cutting Angle | 0-67.5° |
| Cutting Angle Error | ≤1° |
| Line Speed | 0-255m/min |
| Feed Speed | Adjustable |
| Working Voltage | 380V,50/60Hz |
| Total Power | 3.7KW |
| Weight | 1900KG |
| WDC800 | |
| Cutting Range(mm) | ≤800mm |
| Cutting Angle | 0-67.5° |
| Cutting Angle Error | ≤1° |
| Line Speed | 0-250m/min |
| Feed Speed | Adjustable |
| Working Voltage | 380V,50/60Hz |
| Total Power | 3.7KW |
| Weight | 2300KG |
| WDC1000 | |
| Cutting Range(mm) | ≤1000mm |
| Cutting Angle | 0-67.5° |
| Cutting Angle Error | ≤1° |
| Line Speed | 0-255m/min |
| Feed Speed | Adjustable |
| Working Voltage | 380V,50/60Hz |
| Total Power | 3.7KW |
| Weight | 4000KG |
| WDC1200 | |
| Cutting Range(mm) | ≤1200mm |
| Cutting Angle | 0-67.5° |
| Cutting Angle Error | ≤1° |
| Line Speed | 0-300m/min |
| Feed Speed | Adjustable |
| Working Voltage | 380V,50/60Hz |
| Total Power | 4.3KW |
| Weight | 7000KG |
Product Description
WDC315-1200 Multi-angle cutting saw(Multi-angle cutting machine) It is a tool suitable for cutting pipes according to set angles and dimensions when manufacturing pipe fittings such as elbows, tees, and crosses in workshops. It is applicable for cutting solid-wall pipes and structural-wall pipes made of thermoplastic materials such as PE, PP, HDPE, and PPR, as well as pipes and profiles made of other non-metallic materials.
This product can minimize material waste and fully improve welding efficiency. The cutting angle range is 0-67.5°, allowing for cutting at any angle within this range or precise angle positioning cutting. digital display, angle error ≤0.01°, one-time forming
It features an integrated structural design, with the saw body and rotating table designed to be extremely stable. Full-copper wire motor (powerful, stable, low noise); It can automatically detect saw blade breakage and stop automatically, ensuring the safety of operators.
The machine has good stability, low noise, and is easy to operate. The product complies with CE, ISO, and SGS certification standards.
We provide technical support including video tutorials and real-time video call explanations, and we also offer a 2-year warranty to ensure the durability and quality of the machine.
FEATURES
1.Suitable for cutting pipes according to specified angel and dimension while making an Elbow, Tee, Wye and Cross, which lowest the material waste and improve the welding efficiency.
2.Cutting angle 0°~67.5°accurate angle location.
3.Applied to solid pipes or structured wall pipes made of thermoplastic such as PE, PP, PPR and also other pipe and fittings made of non-metal materials.
4.A special designed integrality of body and swivel table makes them extremely stable.
5.Self inspection and stop of the machine in case of saw blade breaks enables to guarantee operator's safety.
6.Reliability, lower noisy, easy to handle.

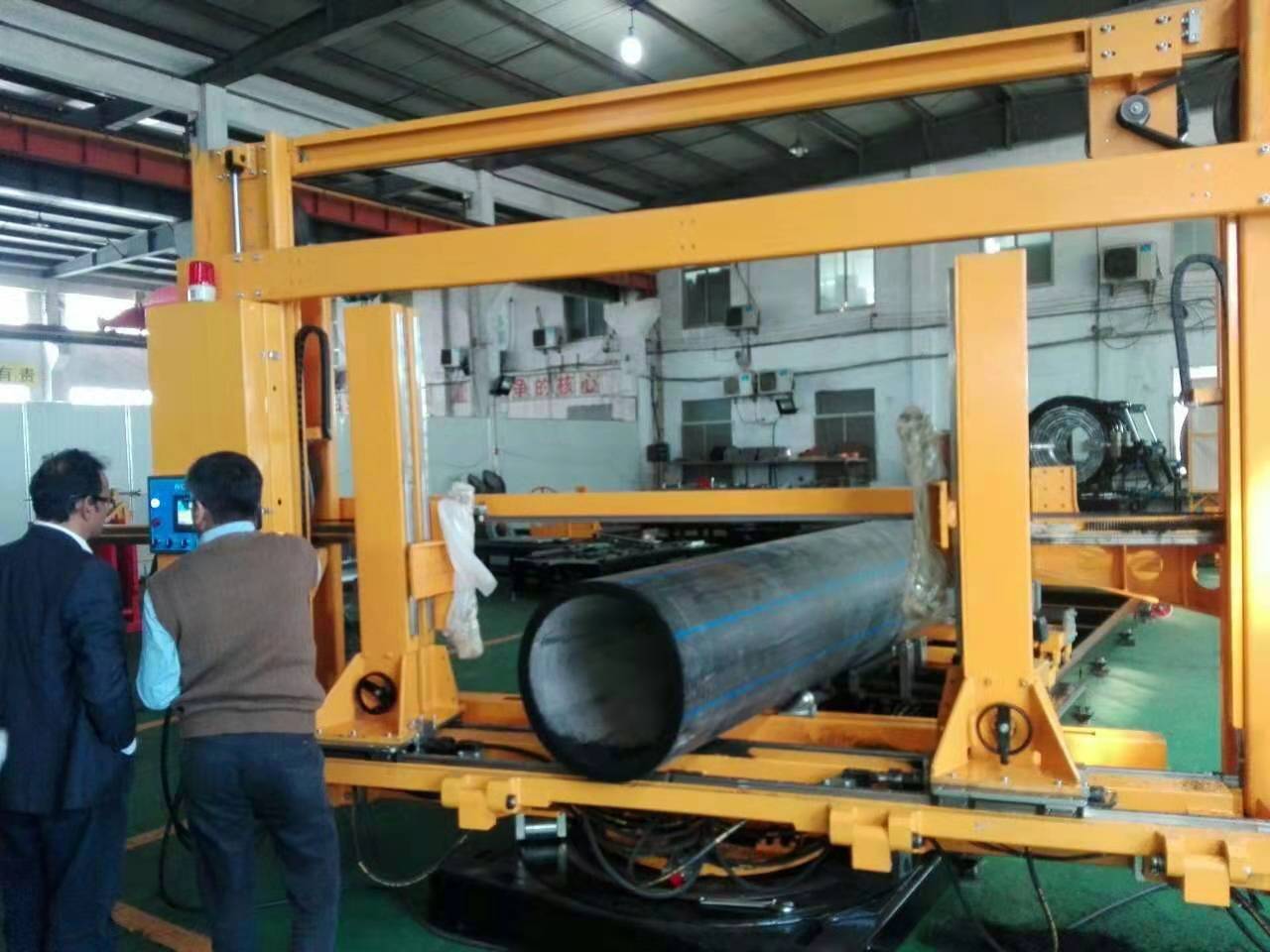

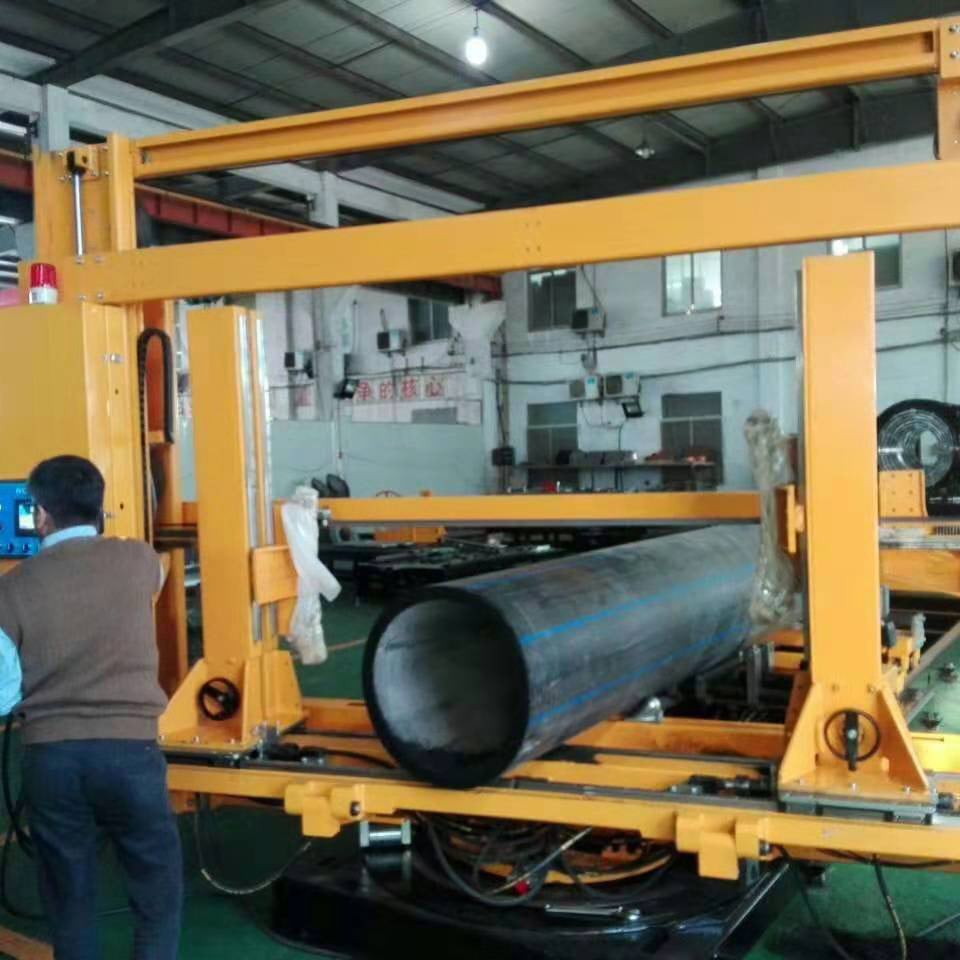

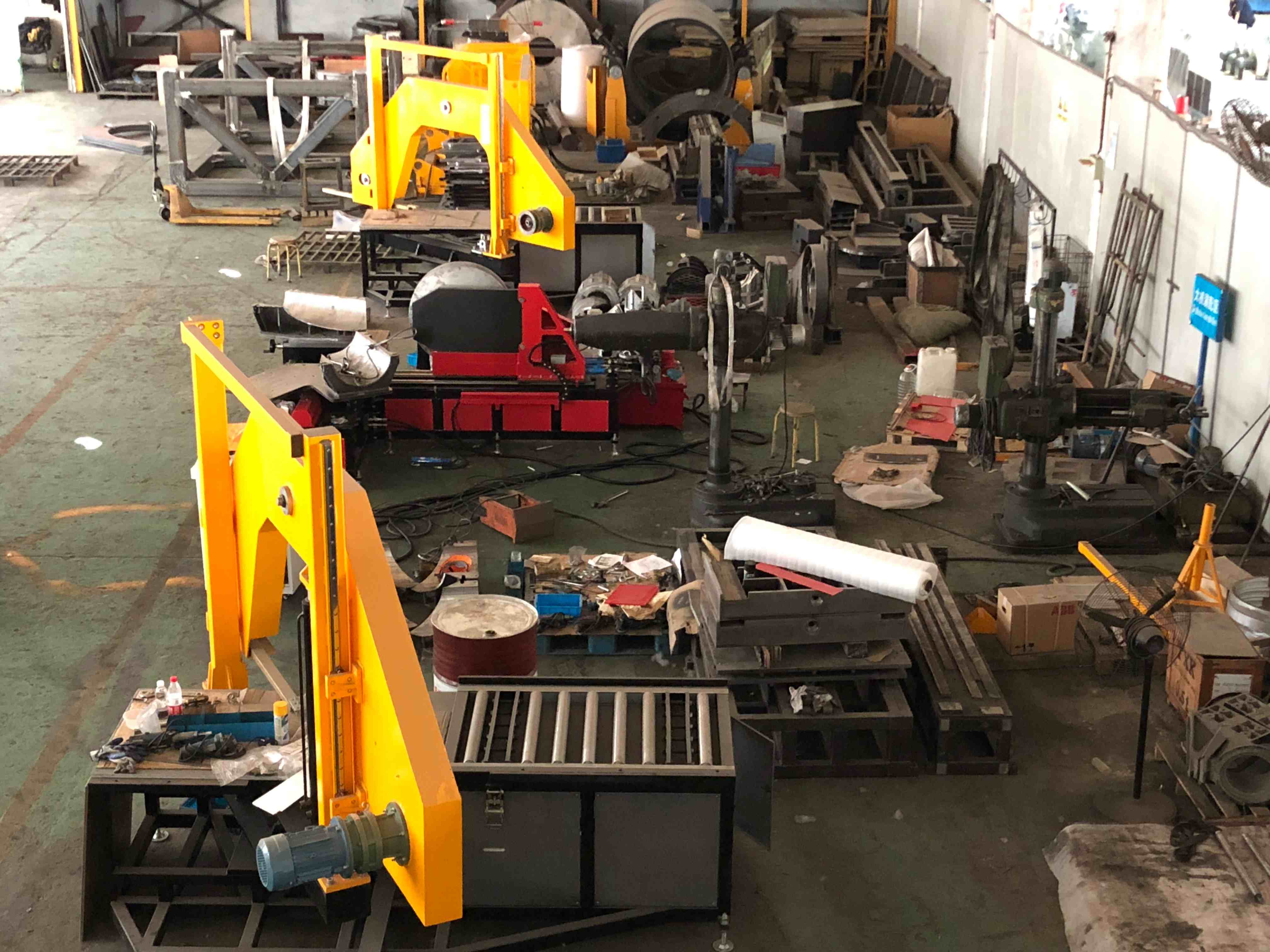

Machine Picture and Project Picture
 |
 |
