| WD160M4 | |
| Welding Range(mm) | 40 50 63 75 90 110 125 140 160 |
| Input Voltage | 220V |
| Usage | PE HDPE PPR pipe welding |
| Certification | ISO CE |
| Warranty | 2 Years |
| Power (kW) | 1.71 KW |
| Heating Plate Power | 1.0 KW |
| Planning Tool Power | 0.71 KW |
| Working Voltage | 220V 50/60HZ |
| Temperature Control range | 0-270℃ |
| VOLUME | 0.18cbm |
| WD200M4 | |
| Welding Range(mm) | 40 50 63 75 90 110 125 140 160 180 200 |
| Input Voltage | 220V |
| Usage | PE HDPE PPR pipe welding |
| Certification | ISO CE |
| Warranty | 2 Years |
| Power (kW) | 2.31 KW |
| Heating Plate Power | 1.6 KW |
| Planning Tool Power | 0.71 KW |
| Working Voltage | 220V 50/60HZ |
| Temperature Control range | 0-270℃ |
| VOLUME | 0.18cbm |
| WD250M4 | |
| Welding Range(mm) | 50 63 75 90 110 125 140 160 180 200 225 250 |
| Input Voltage | 220V |
| Usage | PE HDPE PPR pipe welding |
| Certification | ISO CE |
| Warranty | 2 Years |
| Power (kW) | 2.83 KW |
| Heating Plate Power | 2 KW |
| Planning Tool Power | 0.83 KW |
| Working Voltage | 220V 50/60HZ |
| Temperature Control range | 0-270℃ |
| VOLUME | 0.3cbm |
Product Description

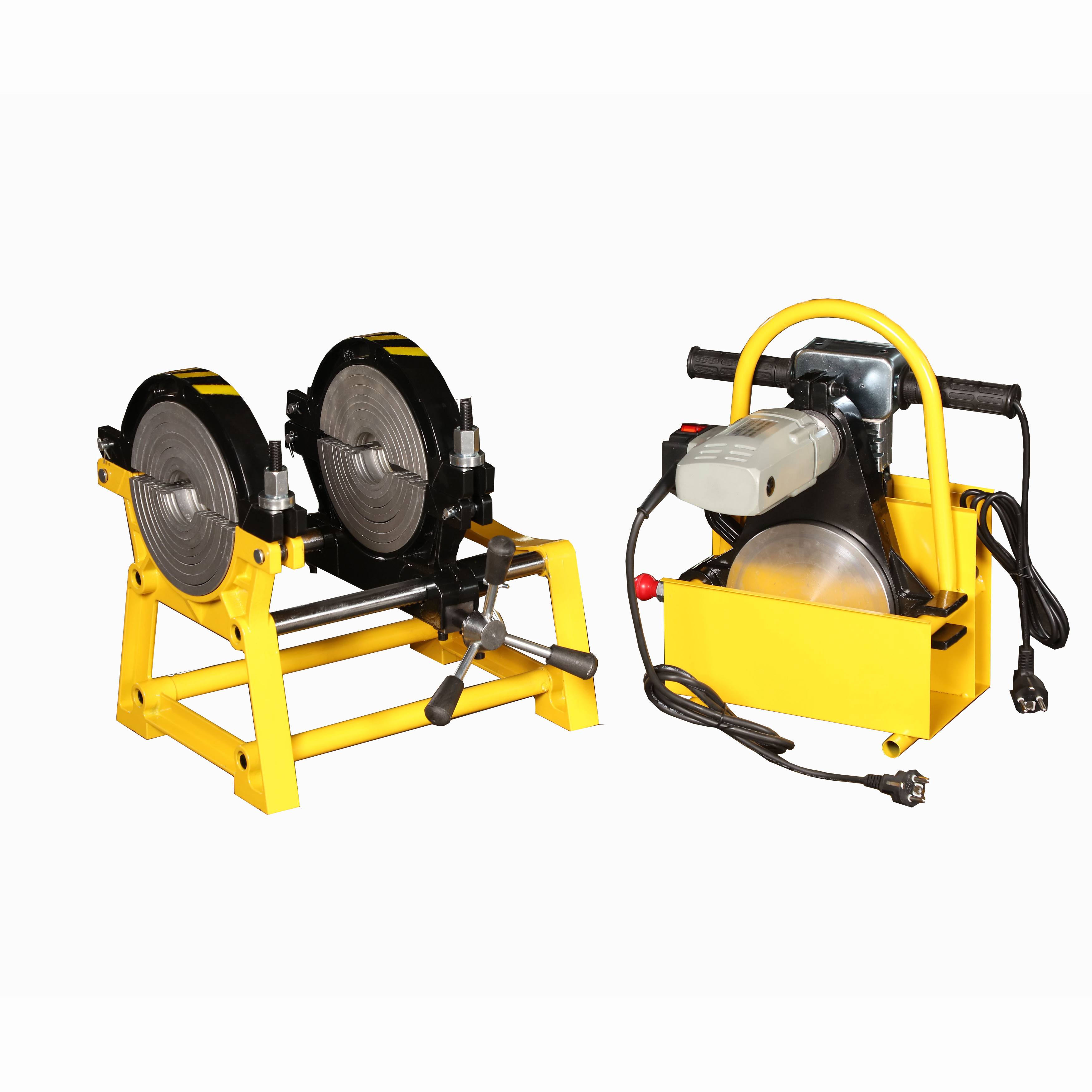

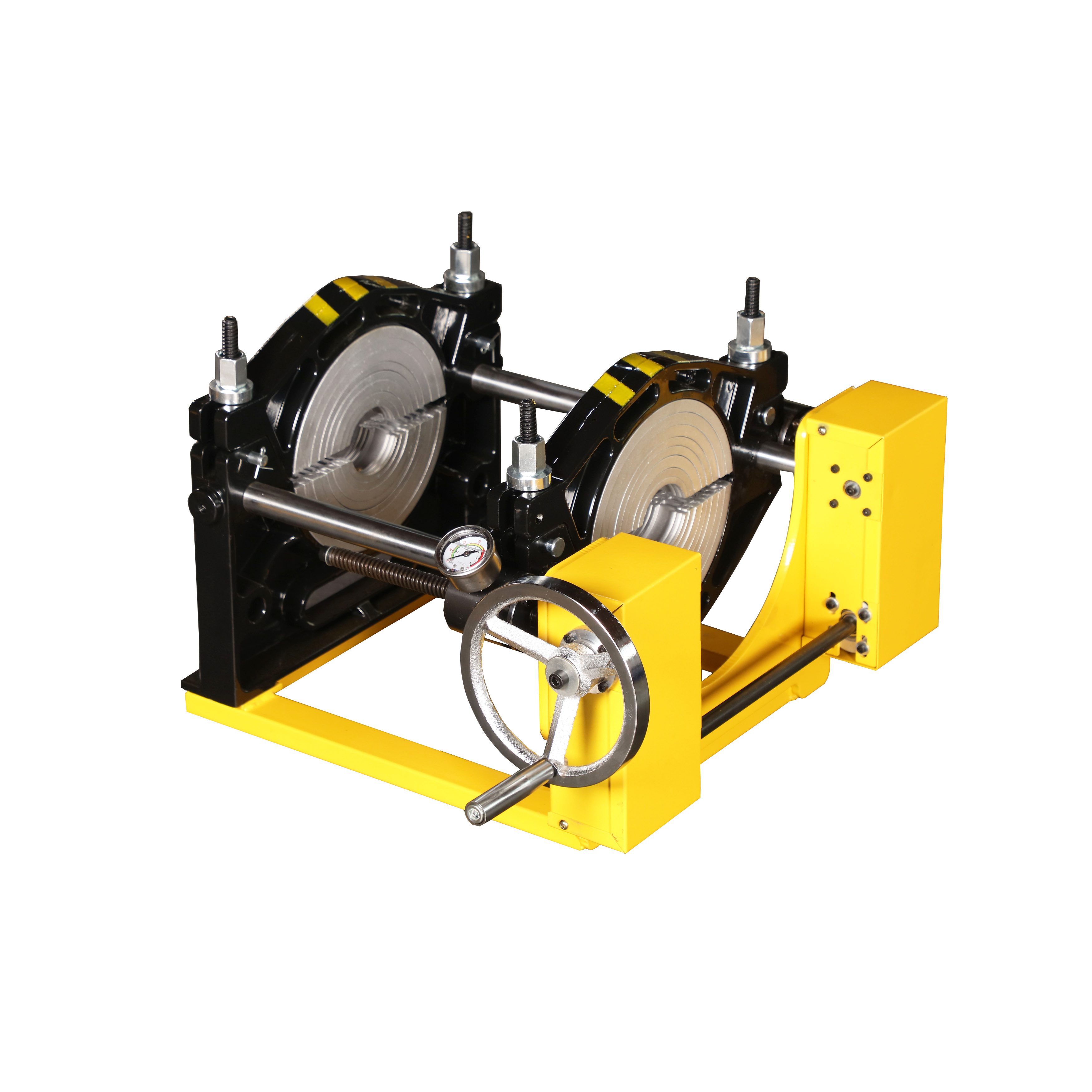

Manual Butt Fusion Welding Machine is a specialized, robust tool for reliable butt fusion of PE, PP, and PVDF pipes. With a single-operation design, it excels in complex construction scenarios (e.g., on-site trench welding) and supports workshop prefabrication of pipe fittings.

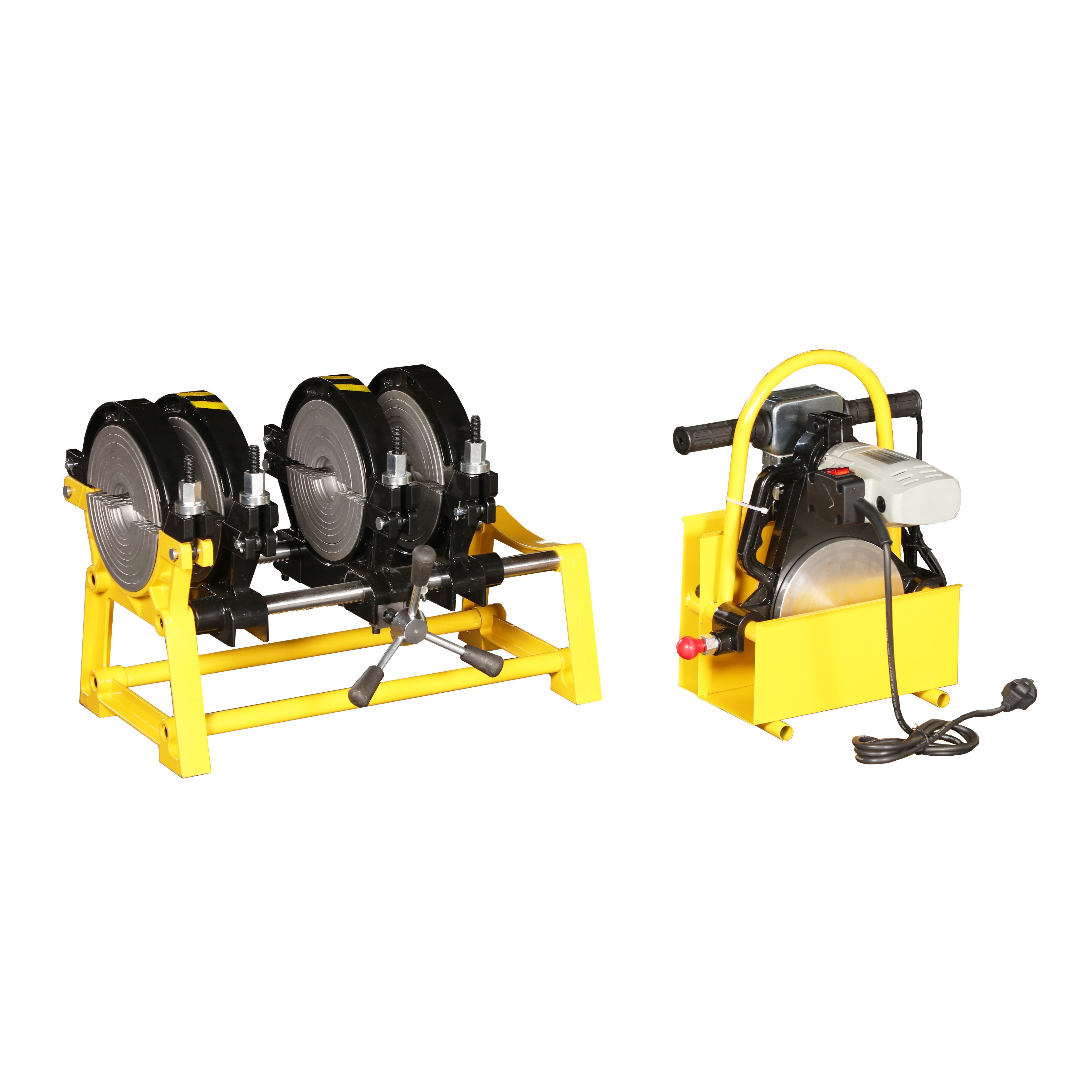

Core structural features: Equipped with 1(or 2) clamps + 1 movable clamps for stable support and precise centering of plastic pipes. A high-power heating plate and smooths pipe ends pre-heating to ensure optimal weld quality. It has a PTFE (Teflon)-coated heating plate with independent temperature control (up to 270°C, uniform temperature) for consistent pipe end heating. A protective casing prevents heater heat loss and shields the trimmer from external impacts.
Performance & adaptability: Built on a sturdy frame, it operates reliably at -40°C to +40°C. Each model has a high-quality adjustable pressure gauge (0–6 MPa) for accurate pressure monitoring, ensuring leak-proof welds. Available in 160mm, 200mm, 250mm sizes, with a powerful motor delivering excellent concentricity. Suitable for demanding conditions in water/gas distribution, sewer systems, and industrial piping.
FEATURES
Precise Temperature Control: Ensures consistent and accurate pipe end heating for a reliable fusion process.

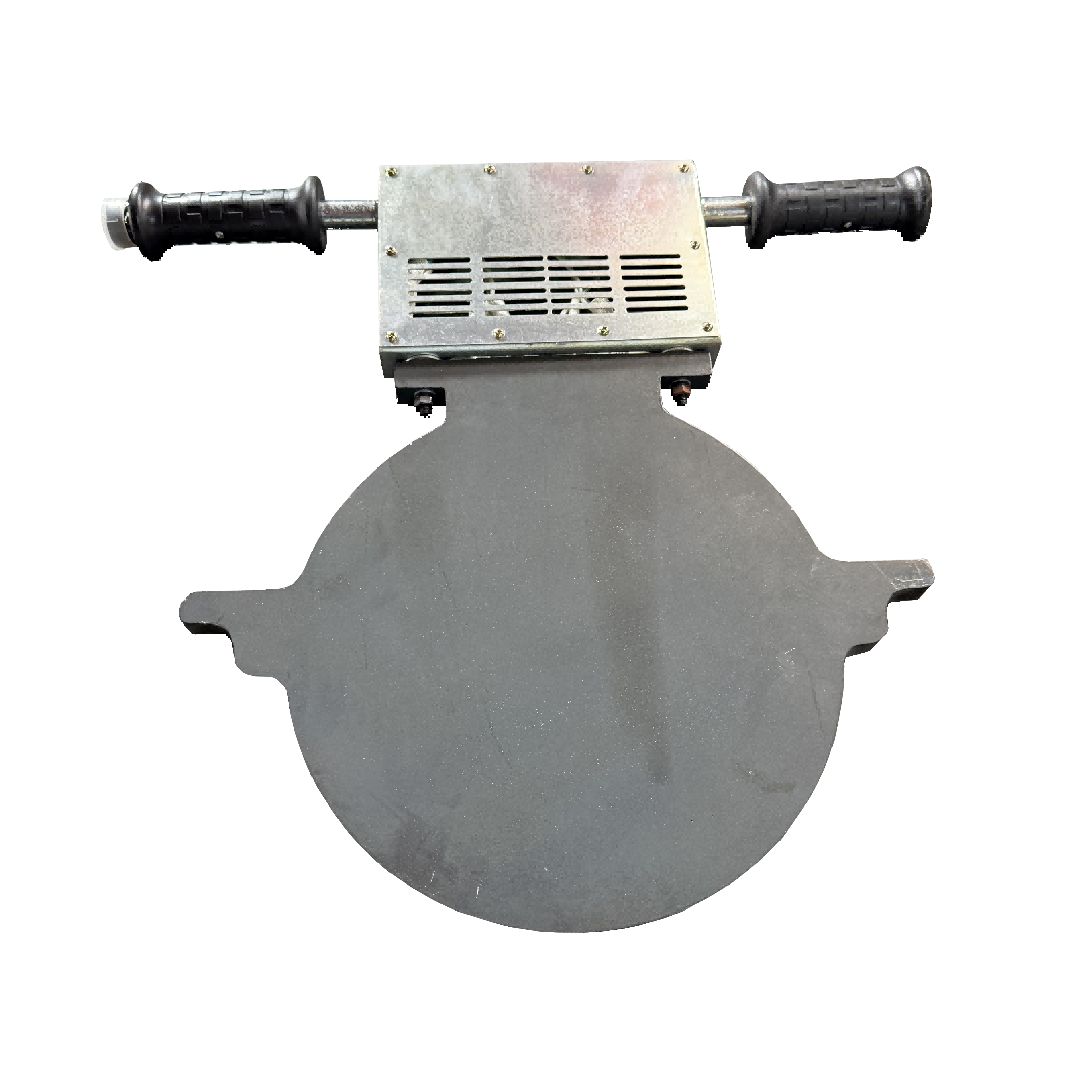

Durable Heating Plate: Comes with a durable, non-stick heating plate that evenly heats pipe ends, preventing overheating or underheating.
Clamping Mechanism: Strong and adjustable clamps securely hold pipes in place, preventing movement during the fusion process.
Versatile Pipe Compatibility: Designed to accommodate a wide range of HDPE pipe diameters, making it suitable for various project sizes.
Portable Design: Often features a portable frame for easy transport and use on different job sites.
Machine Picture and Project Picture
 |
 |
 |
 |
