| Model | WDA630 |
| WELDING RANGE(MM] | 315 355 400 450 500 560 630 |
| HEATING PLATE MAX.TEMPERATURE | 270°C |
| TEMP. DEVIATION IN SURFACE | ≤7°C |
| WORKING VOLTAGE | 380V,50/60Hz |
| HEATING PLATE POWER | 9.35KW |
| PLANNING TOOL POWER | 1.5KW |
| HYDRAULIC UNIT POWER | 2.2KW |
| TOTAL POWER | 13.05KW |
| PRESSURE ADJUSTABLE RANGES | 0.4-8Mpa |

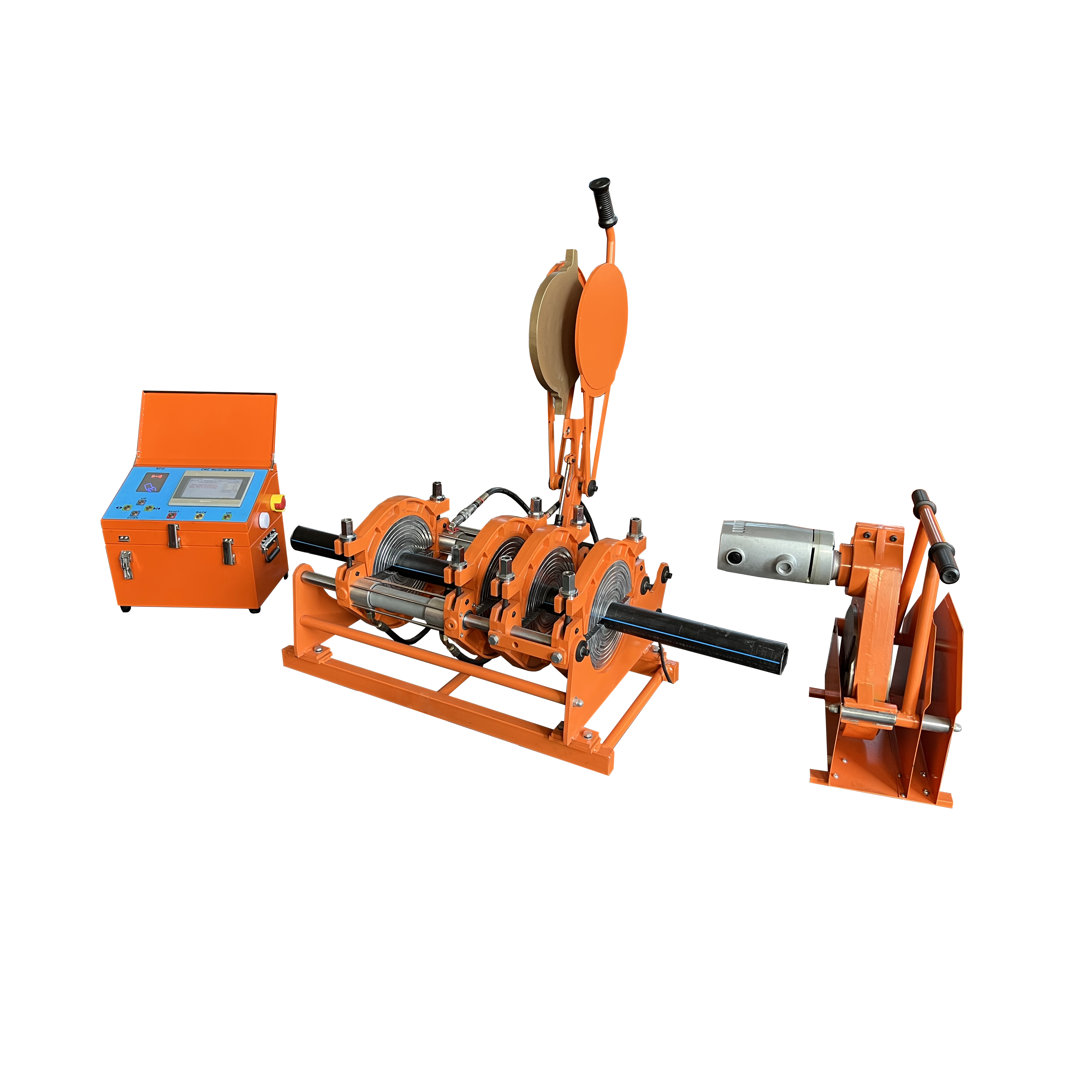

Product Description
This machine has achieved fully automatic functions: You can manually operate the data control panel to achieve the effect of making it run fully automatically. For example, you can directly control the planning tool or heating plate to land automatically in the middle of the pipe for work, and also control the clamps to open or tighten automatically—this also includes hydraulic tightening. Moreover, all these operations can be controlled remotely with a tablet, so you don’t have to stay next to the machine all the time.
We also provide thoughtful technical guidance: Either we send someone to the site to teach you, or give remote guidance through video, helping you solve operation problems.
The machine has high precision, so there is basically no error during welding, which can ensure the accuracy of pipe connection.
The welded pipes are also very strong. Even if used in high-pressure offshore projects or buried deep underground, they will not break, so they are reliable to use.
Regarding after-sales service: If the problem is with the machine itself, we provide a 2-year warranty; if the damage is caused by human operation, you can also send it back for paid repair. In fact, this machine is very durable, and usually there will be no damage problems, so you can use it with confidence.
