Automatic Butt Fusion Machine: Advanced Pipeline Joining Technology for Reliable Thermoplastic Pipe Connections

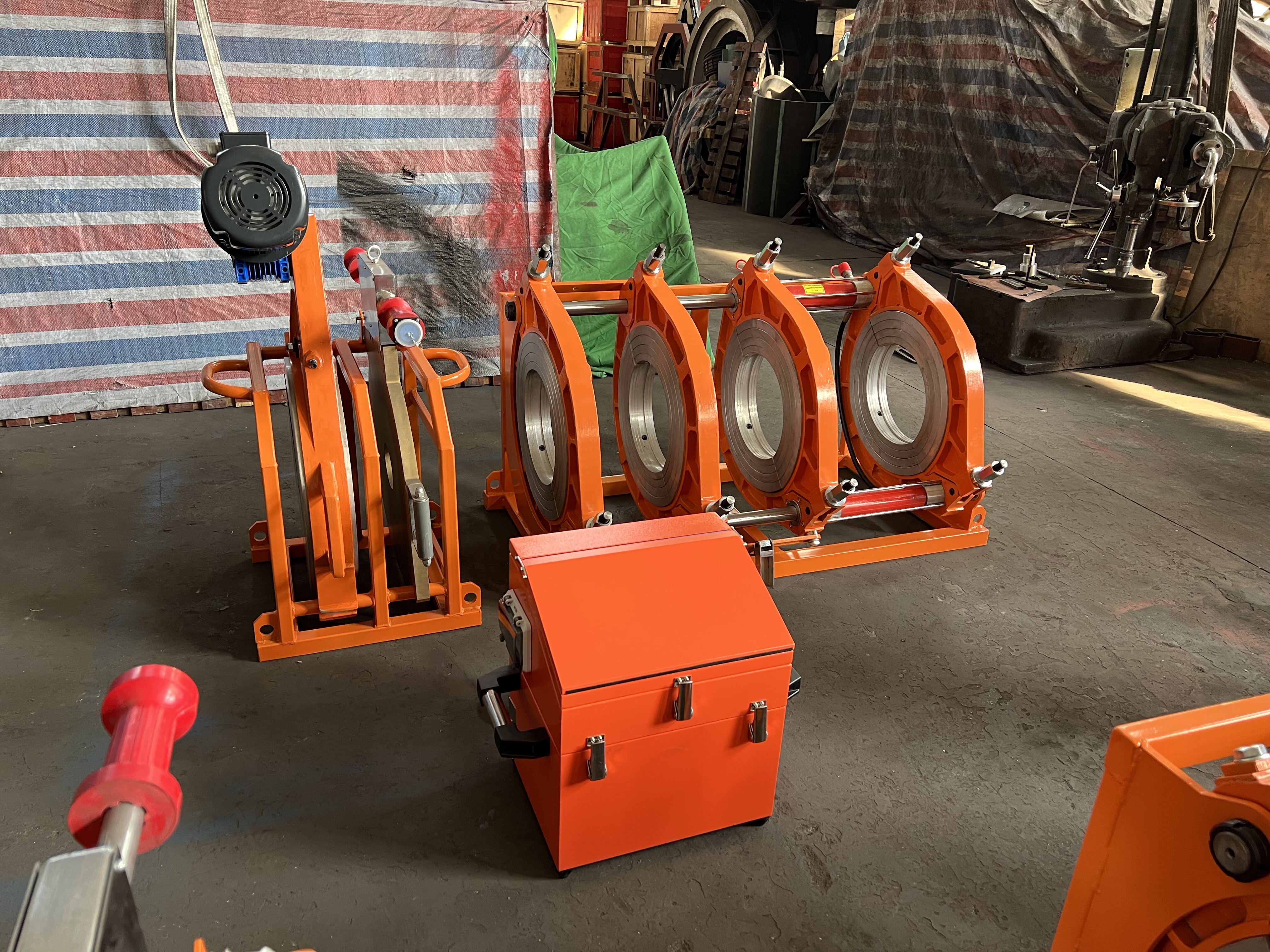

The automatic butt fusion machine incorporates sophisticated control systems that maintain exact temperature and pressure parameters throughout the entire fusion process, representing a fundamental advantage over traditional joining methods. The digital control panel allows operators to input specific values based on pipe material type, diameter, and wall thickness, with the machine then automatically executing the programmed fusion cycle without requiring constant monitoring or manual adjustments. Temperature sensors embedded in the heating plate continuously monitor surface conditions, making real-time adjustments to maintain the optimal melting point required for proper molecular bonding between pipe surfaces. This precision prevents overheating that could degrade material properties or underheating that results in weak joints prone to failure under pressure. The hydraulic pressure system applies force according to established fusion standards, calculated based on the pipe's cross-sectional area to ensure uniform pressure distribution across the entire joint interface. During the heating phase, the machine applies a specific interfacial pressure that creates a thin bead of molten material without excessive displacement, indicating proper heat penetration. The transition to fusion pressure occurs automatically at the programmed moment, pressing the heated surfaces together with exact force to create intimate molecular entanglement. Pressure transducers provide continuous feedback, allowing the control system to compensate for any variations and maintain target values within tight tolerances. This automated precision eliminates the guesswork and inconsistency associated with manual fusion techniques where operators must judge readiness based on visual cues and apply pressure through mechanical means susceptible to variation. The cooling phase also benefits from controlled pressure maintenance, as the machine holds the joint under specific compression while the material solidifies, preventing separation or void formation that would compromise structural integrity. Modern automatic butt fusion machines store multiple fusion programs in memory, allowing quick selection of appropriate parameters for different pipe specifications without manual calculation or reference to fusion charts. This capability proves particularly valuable on projects involving various pipe sizes or materials, where frequent parameter changes would otherwise slow productivity. The precision control systems ensure compliance with industry standards and manufacturer specifications, creating joints that meet or exceed required performance criteria for pressure rating, tensile strength, and long-term durability.

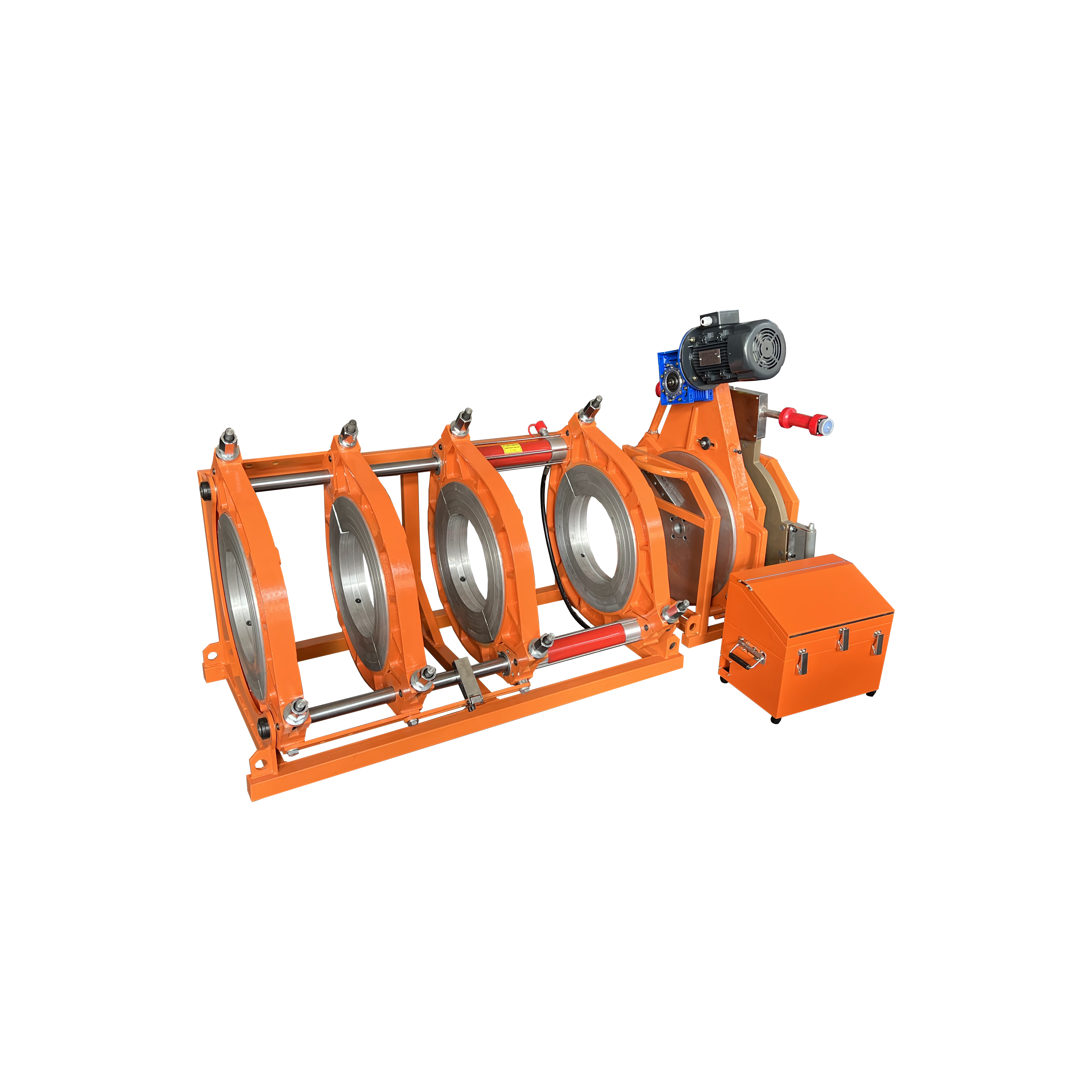

The alignment and clamping systems built into automatic butt fusion machines provide critical functionality that directly impacts joint quality and operational efficiency on pipeline projects. Proper pipe alignment stands as an essential prerequisite for successful fusion, as even small angular deviations or offset misalignment can create stress concentrations that lead to premature joint failure. The machine's clamping mechanism secures both pipe ends in a fixed geometric relationship, eliminating movement during the heating and fusion phases when positional shifts would be particularly detrimental. Heavy-duty clamps accommodate the full range of pipe diameters the machine is rated for, with adjustable jaw positions that adapt to different sizes without requiring separate equipment. The clamping force applied is substantial, often exceeding several tons, ensuring that pipes remain absolutely stationary even when subjected to the considerable hydraulic pressures involved in the fusion process. Alignment guides and reference systems help operators position pipes correctly before clamping, with some advanced models incorporating laser alignment tools that provide visual confirmation of proper setup. The automatic butt fusion machine's frame design maintains rigid parallel geometry between the two clamping assemblies, preventing the angular misalignment that would create uneven heating and pressure distribution across the joint face. This structural rigidity becomes particularly important when working with larger diameter pipes where greater distances between clamps amplify the effects of any frame deflection. Many machines feature a sliding carriage system where one clamp assembly moves along precision rails during the fusion cycle, ensuring that pipe ends meet in perfect axial alignment when pressed together. The hydraulic actuators that drive this movement operate smoothly without jerking or hesitation that could disturb the molten material at the joint interface. Built-in facing tools attached to the clamping system prepare pipe ends immediately before fusion, creating fresh, parallel surfaces free from oxidation or contamination. This integrated facing capability ensures optimal conditions for molecular bonding while eliminating the need for separate preparation equipment. The clamping mechanism also facilitates the insertion and removal of the heating plate, with sufficient opening width to accommodate the plate thickness plus adequate clearance for safe handling. Quick-release mechanisms allow rapid pipe loading and unloading, minimizing non-productive time between fusion cycles and maximizing equipment utilization rates. The robust construction withstands the demanding conditions of field use, maintaining alignment accuracy even after years of service in construction environments.

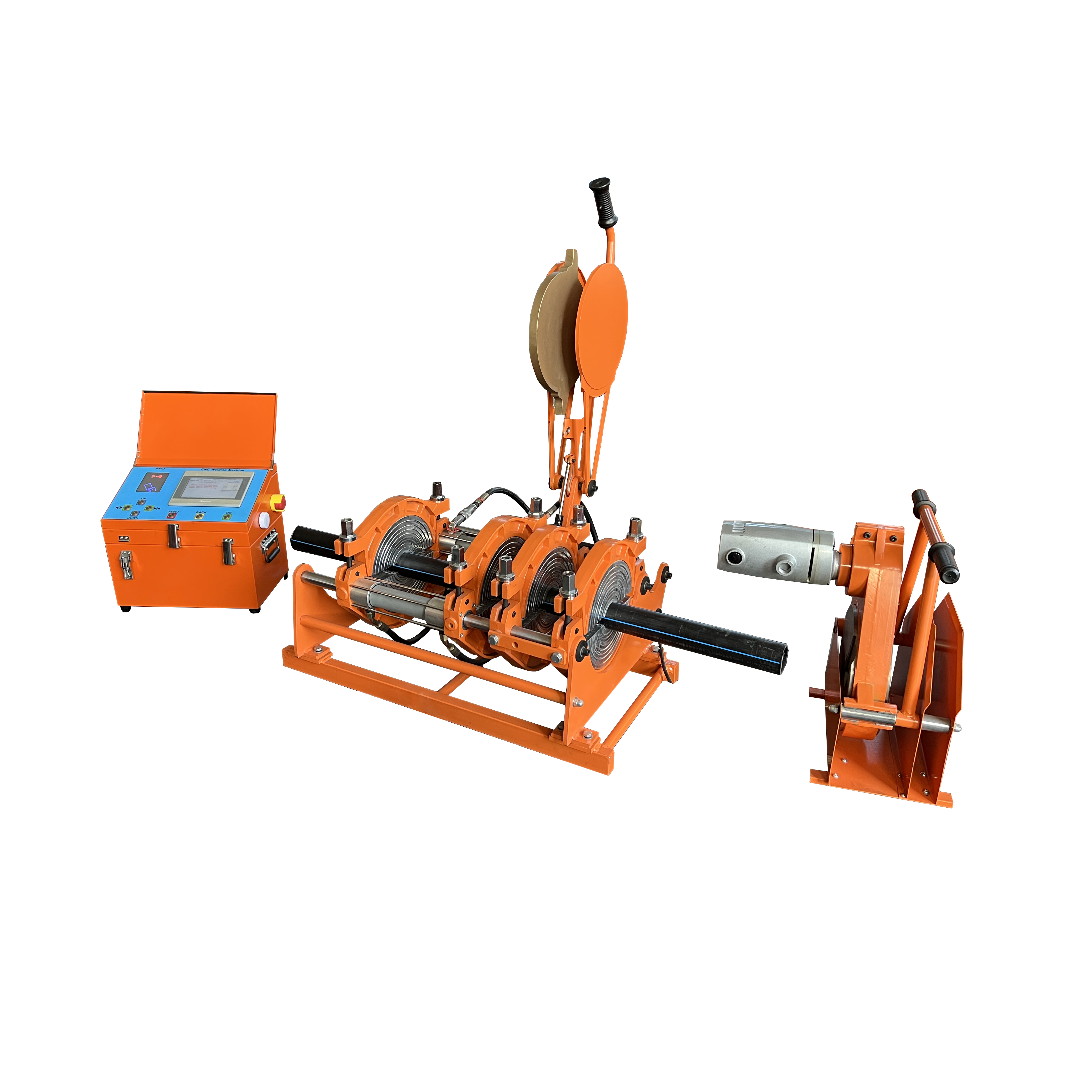

The automatic butt fusion machine transforms pipeline installation productivity through intelligent automation features that streamline workflows and reduce the time required to complete each joint. Traditional manual fusion methods involve numerous steps where operators must monitor conditions, make judgments, and perform physical actions in proper sequence, creating opportunities for delays and errors. The automated system executes the entire fusion cycle according to programmed parameters, freeing the operator to prepare the next joint or perform other tasks while the machine works independently. This parallel processing capability allows a single operator with one machine to maintain continuous productivity, whereas manual methods often require the operator's undivided attention throughout the fusion process. Cycle time optimization represents a key productivity advantage, as the automatic butt fusion machine calculates the minimum heating, fusion, and cooling durations necessary for reliable joints based on scientific principles rather than conservative estimates. The machine transitions between fusion phases at precisely the right moments, eliminating the padding time that operators typically add when working manually to ensure adequate heating or cooling. Digital timers count down each phase with second-level precision, maintaining consistency across all joints regardless of environmental conditions or operator fatigue that affect human time estimation. Some advanced models incorporate adaptive algorithms that adjust parameters based on ambient temperature, automatically compensating for cold weather that would otherwise require longer heating times or hot conditions that reduce necessary heat application. The data logging functionality supports continuous improvement efforts by providing detailed records of cycle times, allowing project managers to accurately estimate completion schedules and identify opportunities for further optimization. Quick pipe changeover facilitated by efficient clamping systems means less downtime between joints, with some machines capable of being ready for the next fusion within minutes of completing the previous joint. The automatic butt fusion machine's portability brings full-capability fusion directly to the point of installation, eliminating the transportation time and handling risks associated with pre-fabricating joints at a central location and then moving completed pipe sections to the field. Reduced rework requirements contribute significantly to overall productivity, as the consistent quality produced by automated fusion means fewer defective joints that would require cutting out and redoing, which typically costs double the time of the original installation. The equipment reliability minimizes unplanned downtime, with robust components engineered for continuous operation in demanding field conditions without frequent breakdowns that halt progress. Many contractors report productivity increases of fifty percent or more after transitioning from manual to automatic fusion methods, with the gains becoming even more pronounced on large-diameter pipes where manual techniques become increasingly difficult and time-consuming.
